What is an OM3 Fiber Optic Patch Cord?

An OM3 fiber optic patch cords are high-performance multimode fiber optic patch cords that support high-speed data transmission (10G, 40G, and even 100G). They feature long transmission distances, high bandwidth, and strong compatibility, and are primarily used in data centers, enterprise campus networks, and high-definition video transmission.

Basic Concepts of OM3 Fiber Optic Patch Cords

OM3 fiber optic patch cords are a type of multimode fiber optic patch cord, with 50/125-micron laser-optimized multimode fiber as its core material. Compared to traditional OM2 fiber, OM3 can support Ethernet transmission speeds up to 10Gbps at an 850nm wavelength, with a transmission distance of up to 300 meters, and is compatible with 1G, 10G, 40G, and even 100G high-speed networks.

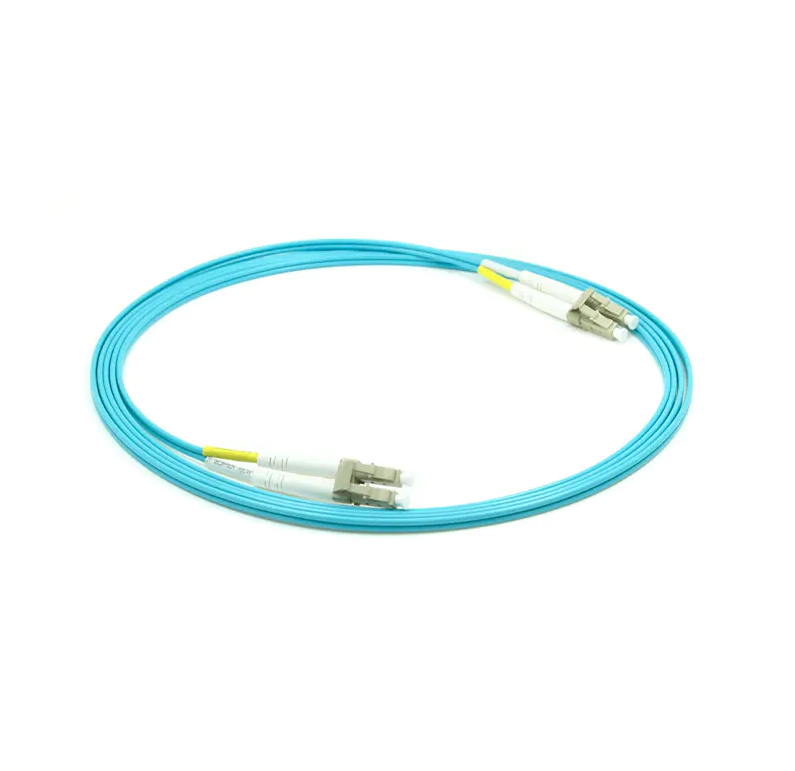

Notably, OM3 fiber optic patch cords utilize an aqua (water green) outer sheath design, facilitating quick identification and differentiation of different fiber types in cabling environments, improving management efficiency.

Key Performance Advantages of OM3 Fiber Optic Patch Cords

High Bandwidth Performance: OM3 fiber optic patch cords offer a bandwidth of 2000 MHz·km at 850nm wavelength, four times higher than OM2's 500 MHz·km. This means they can provide higher data transmission rates over the same distance. OM3 fiber optic patch cords are ideal for enterprise networks requiring the transmission of high-definition video, cloud computing data, or large-scale databases.

Strong Compatibility: OM3 fiber optic patch cords are backward compatible with OM1 and OM2 standards, supporting various optical modules such as SFP+ and QSFP+. This compatibility is crucial for data center upgrades, reducing network transformation costs.

Low Insertion Loss and High Reliability: High-quality OM3 fiber optic patch cords typically have an insertion loss below 0.35dB and a return loss above 35dB, ensuring stable data transmission and a low bit error rate. In long-running enterprise networks, this stability significantly reduces maintenance costs.

High-Quality OM3 Fiber Optic Patch Cords: Typical Application Scenarios

High-Speed ​​Data Center Interconnection

OM3 fiber optic patch cords support 40G/100G high-speed fiber optic links, suitable for high-speed interconnection between servers, storage devices, and switches. For example, some large cloud computing companies commonly use OM3 fiber optic patch cords in the links from core switches to servers to ensure stable high-volume data transmission.

Enterprise Campus Network Cabling

For enterprise campus networks spanning multiple floors or buildings, OM3 fiber optic patch cords can achieve high-bandwidth coverage without adding complex fiber optic trunks, reducing the number of fibers and cabling costs.

High-Definition Video and Broadcast Transmission

In scenarios requiring high bandwidth and low latency high-definition video transmission, OM3 fiber optic patch cords can ensure smooth, high-quality image transmission, such as internal network cabling in broadcast television stations or large studios.

How to Choose the Right OM3 Fiber Optic Patch Cord

When selecting OM3 fiber optic patch cords, pay attention to the following key indicators:

• Patch Cord Type: Common types include LC-LC, LC-SC, and SC-SC. Choose the appropriate type based on the network device interface.
• Length: Select according to the actual cabling distance to avoid signal attenuation or cabling redundancy caused by excessively long or short lengths.
• Connection Quality: High-quality fiber optic patch cords use PC, UPC, or APC end-face treatment, resulting in lower insertion and return losses.
• Brand and Certification: Choose OM3 fiber optic patch cords certified by TIA/EIA or ISO/IEC to ensure stability and compatibility.

For example, in a medium-sized data center with 1000 servers, using 100-meter LC-LC OM3 fiber optic patch cords can reduce cabling costs by approximately 15% to 20% while maintaining 10G speeds.

OM3 fiber optic patch cords, with their high bandwidth, low loss, and excellent compatibility, have become an indispensable cabling choice for modern high-speed networks and data centers. Whether for enterprise campus networks, data center interconnects, or high-definition video transmission, the appropriate selection of OM3 fiber optic patch cords can significantly improve network performance and reduce maintenance costs.
