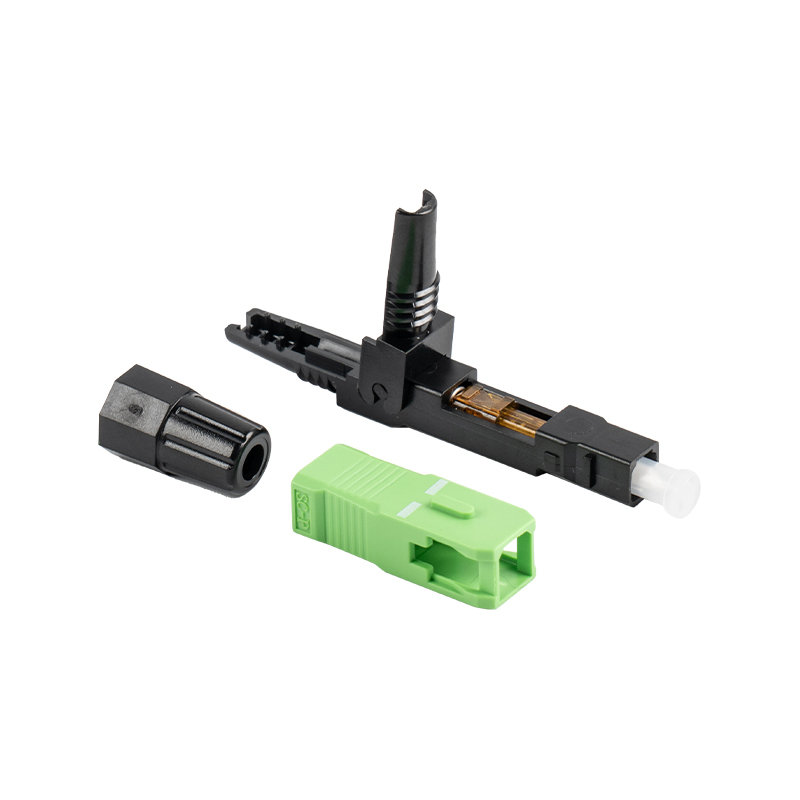

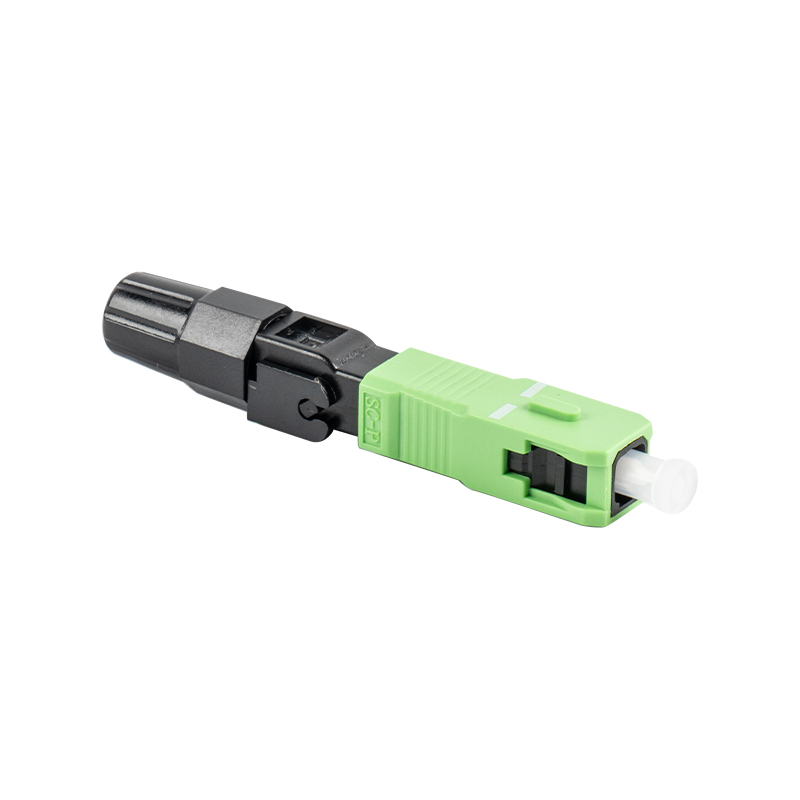

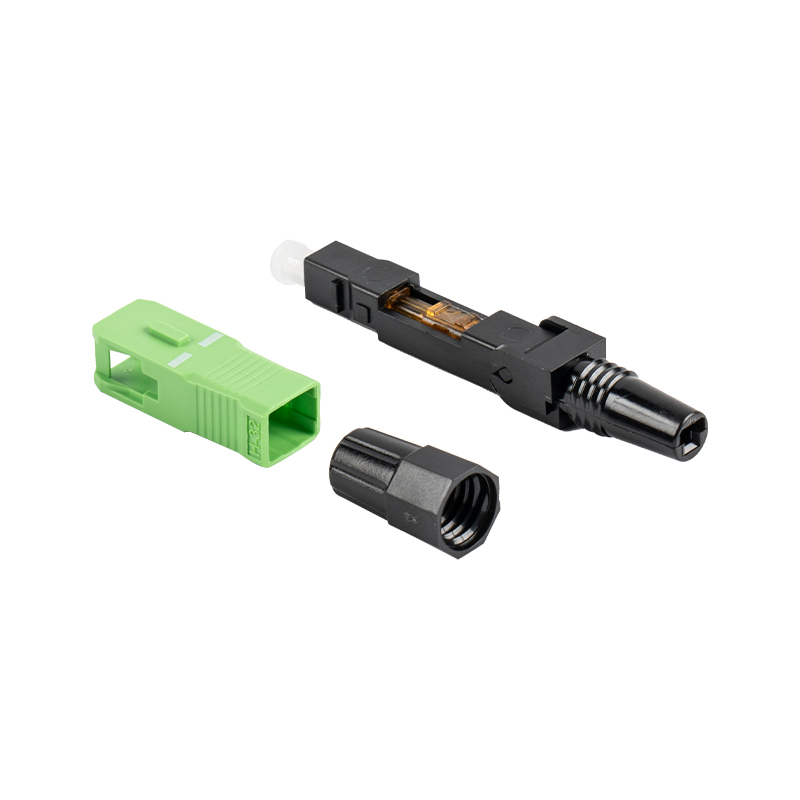

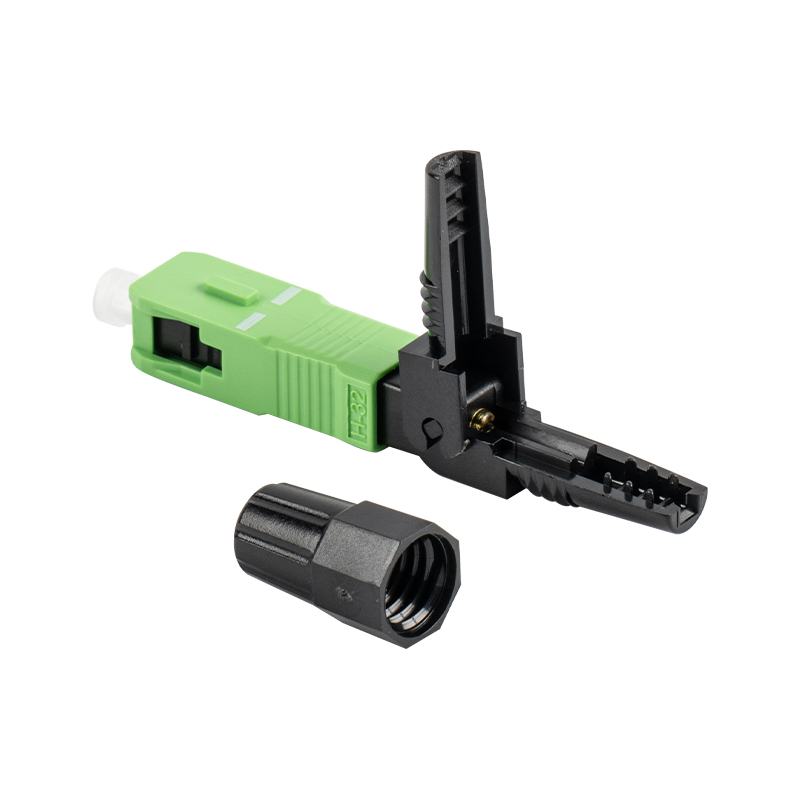

The GSG-01-55 mm-APC Vertical Fiber Optic Fast connector is an efficient and convenient fiber optic connection solution designed for field installation.
The GSG-01-55 mm-APC Vertical Fiber Optic Fast connector is an ideal choice for fiber optic network installation. It is suitable for various fiber optic communication systems such as data centers, local area networks, wide area networks, etc., and can improve the efficiency and reliability of fiber optic connections.
The GSG-01-55mm-APC Vertical Fiber Optic Fast connector can be installed quickly, tool-free on site, easy to operate, saving time and labor costs. Precision ceramic sleeves are used to ensure the stability and reliability of the connection.
Contact Us
| Item | LX-01-C(55mm)- APC Vertical |
| Length | 55mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~+75*C |
| Storage Temperature | -40~ +85°C |
| Mating Times | 500Times |
| Cable Diameter | Drop cable:2.0*3.0mm/2.0*5.0mmRound cable :0.9mm |
