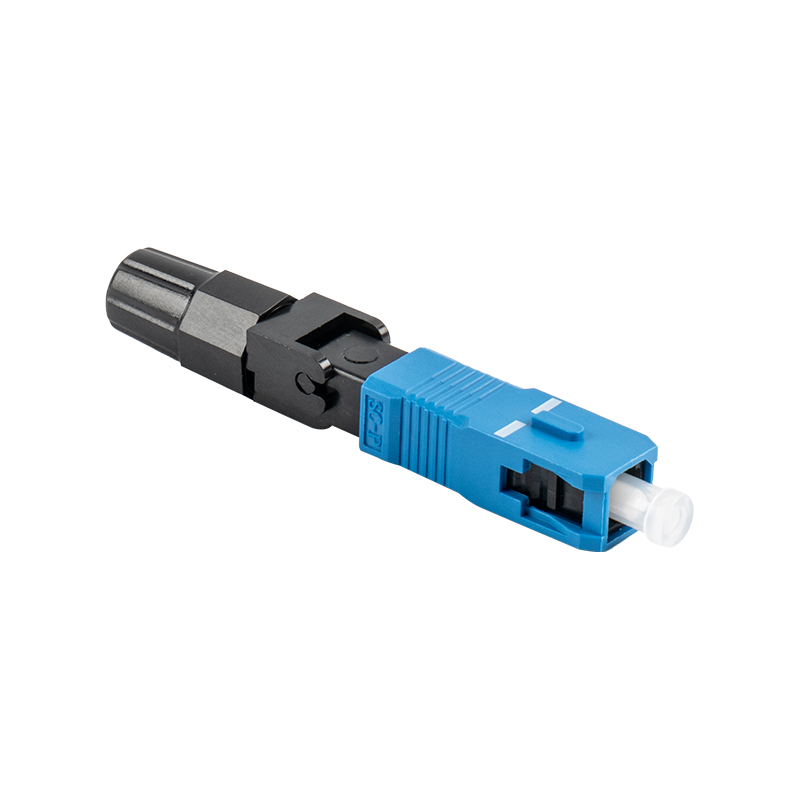

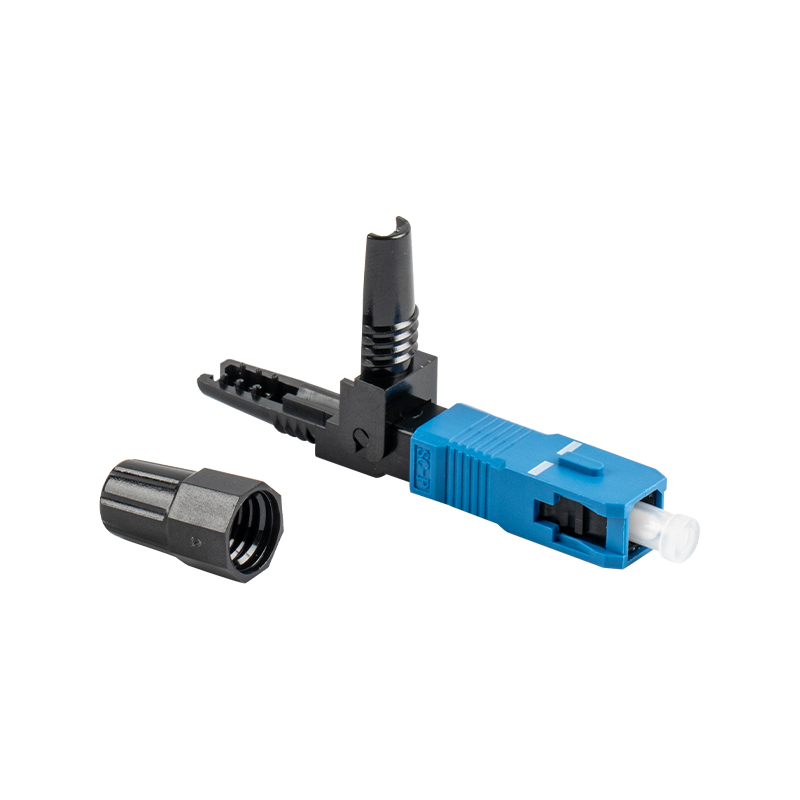

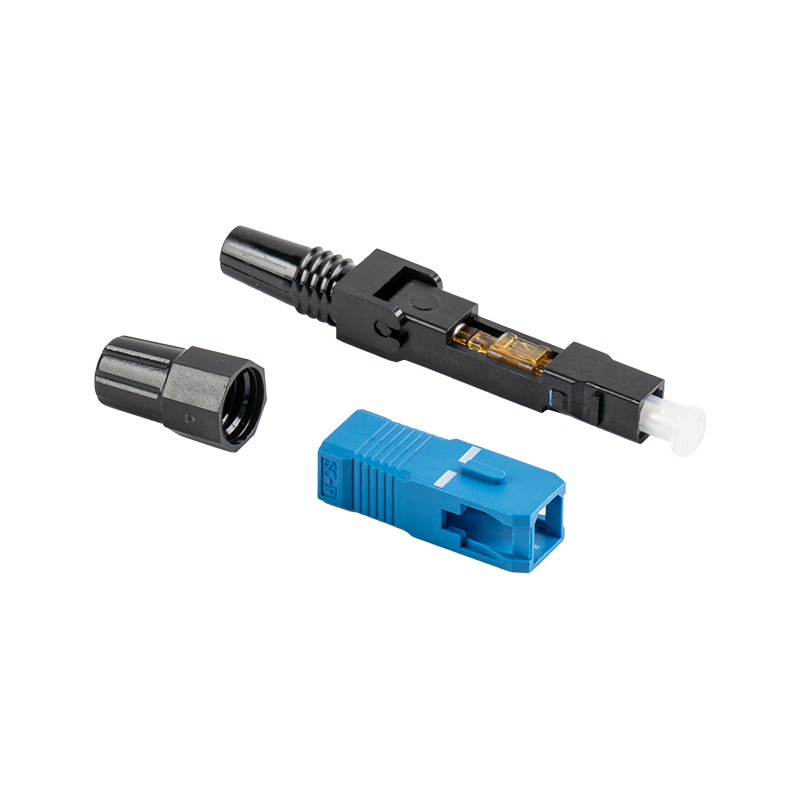

GSG-01-55mm-UPC Vertical Fiber Optic Fast connector adopts pre-polishing technology, which can quickly and tool-freely complete fiber optic termination on site. It can be installed on site without tools, is easy to operate, saves time and labor costs, and does not require traditional welding or glue steps, which shortens installation time and cost and improves work efficiency.
GSG-01-55 mm-UPC Vertical Fiber Optic Fast connector supports 500 plug-in and pull-out times, ensuring stability and durability in long-term use.
GSG-01-55 mm-UPC Vertical Fiber Optic Fast connector is suitable for fiber optic cables of different diameters and has strong compatibility.
Contact Us
| Item | LX-01-C(55mm)-UPC Vertical |
| Length | 55mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~ +75°C |
| Storage Temperature | -40~+85°C |
| Mating Times | 500Times |
| Cable Diameter | Drop cable:2.0*3.0mm/2.0*5.0mmRound cable :0.9mm |
