GSG-01-60mm-APC Horizontal Fiber Optic Fast connector

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-01-60mm-APC Horizontal Fiber Optic Fast connector

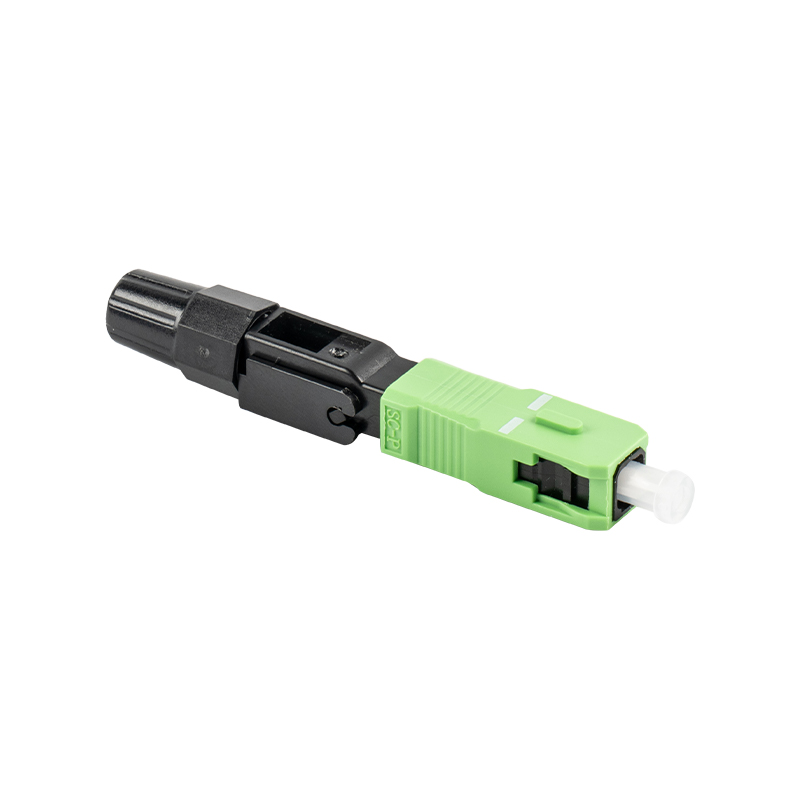

GSG-01-60mm-APC Horizontal Fiber Optic Fast connector

GSG-01-60 mm-APC Horizontal Fiber Optic Fast Connector adopts pre-polishing technology, enabling quick and tool-free fiber optic termination on-site.
GSG-01-60 mm-APC Horizontal Fiber Optic Fast Connector supports up to 500 plug-in and pull-out cycles, ensuring long-term stability and durability. Its robust construction guarantees reliable performance even under frequent use.
GSG-01-60 mm-APC Horizontal Fiber Optic Fast Connector is compatible with a wide range of fiber optic cable diameters, offering strong versatility and adaptability.

PREV：GSG-01-55mm-UPC Vertical Fiber Optic Fast connectorNEXT：GSG-01-60mm-UPC Horizontal Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-01-A(60mm)-APC Horizontal
    Length 60mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75*C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
