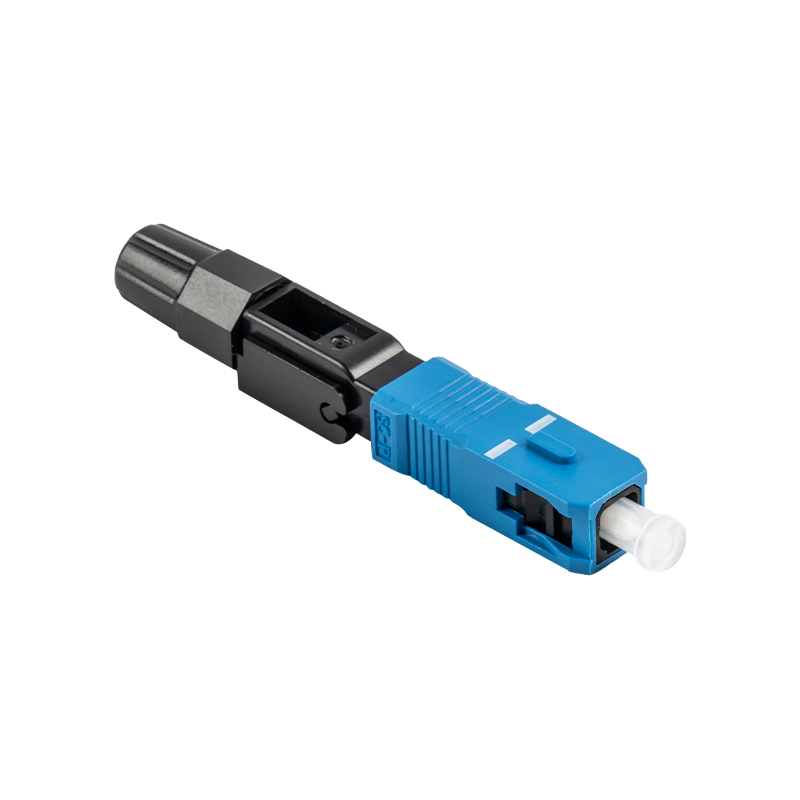

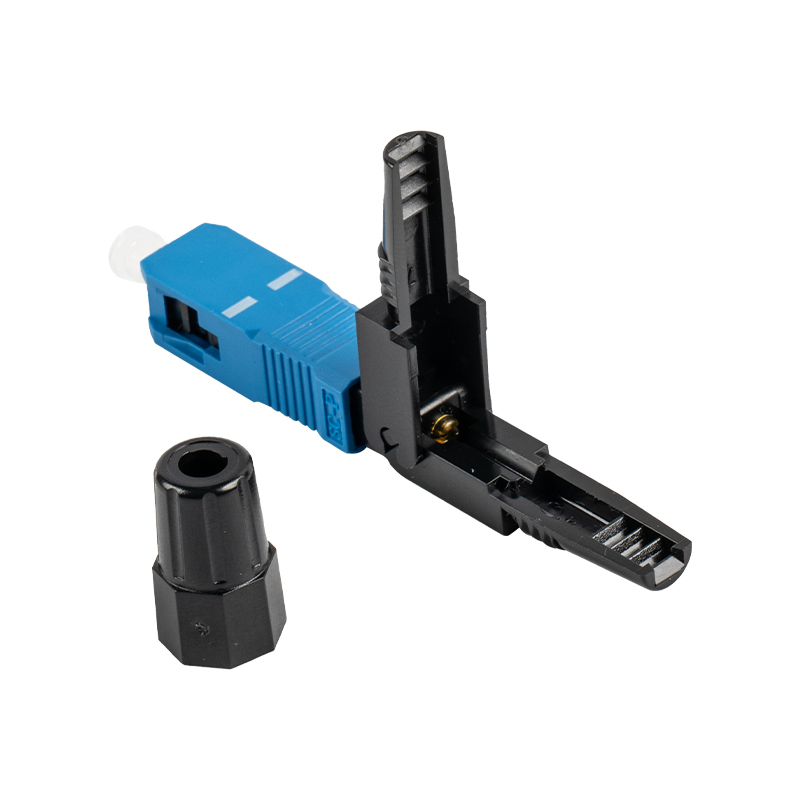

GSG-01-60mm-UPC Horizontal Fiber Optic Fast connector

GSG-01-60 mm-UPC Horizontal Fiber Optic Fast Connector adopts pre-polishing technology. This innovative design allows for effortless installation without the need for traditional tools, significantly reducing time and labor costs.
GSG-01-60 mm-UPC Horizontal Fiber Optic Fast Connector compatibility with various fiber optic cable diameters makes it a versatile solution for diverse applications.
GSG-01-60 mm-UPC Horizontal Fiber Optic Fast Connector is an ideal choice for fiber optic network installations, particularly in environments such as data centers, local area networks, and wide area networks. It effectively boosts the efficiency and reliability of fiber optic connections, making it a valuable asset for any fiber optic communication system.

  • Item LX-01-A(60mm)-UPC Horizontal
    Length 60mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of FRRules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75C
    Storage Temperature -40~+85 °C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
