GSG-FC-55mm-UPC Fiber Optic Fast connector Manufacturers

Home / Product / Fiber Optic Fast Connector / Hot melt Series Fiber Optic Fast connector / GSG-FC-55mm-UPC Fiber Optic Fast connector

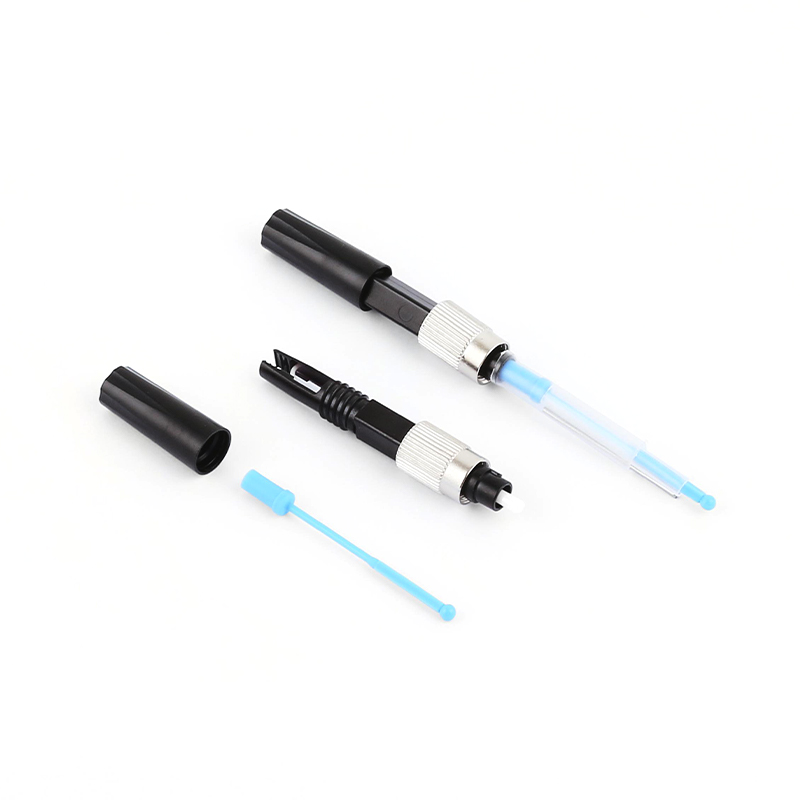

GSG-FC-55mm-UPC Fiber Optic Fast connector

GSG-FC-55 mm-UPC Fiber Optic Fast connector comes pre-polished, which means it is ready for use right out of the box. This eliminates the need for additional polishing steps, saving time and effort during installation. The pre-polished end face ensures a clean and precise connection, reducing signal loss and improving overall network performance.

PREV：GSG-FC-55mm-APC Fiber Optic Fast connectorNEXT：No previous article
  • Details
  • contact us
  • Item Hot melt-FC(55mm)-UPC
    Length 55mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of FRRules 125um
    Insertion Loss MAX≤0.3dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature  -20~+75°C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
