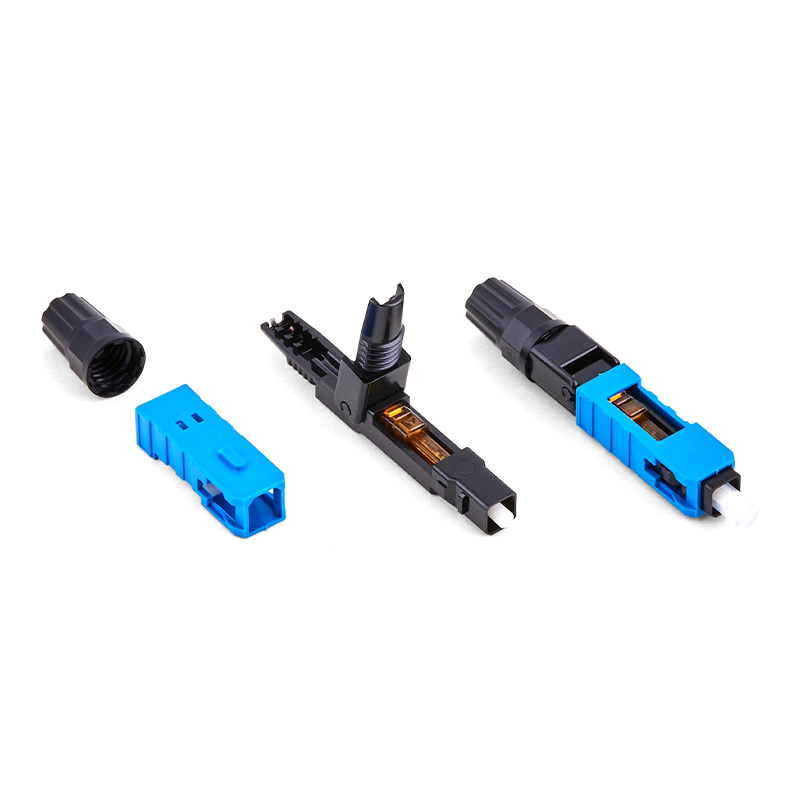

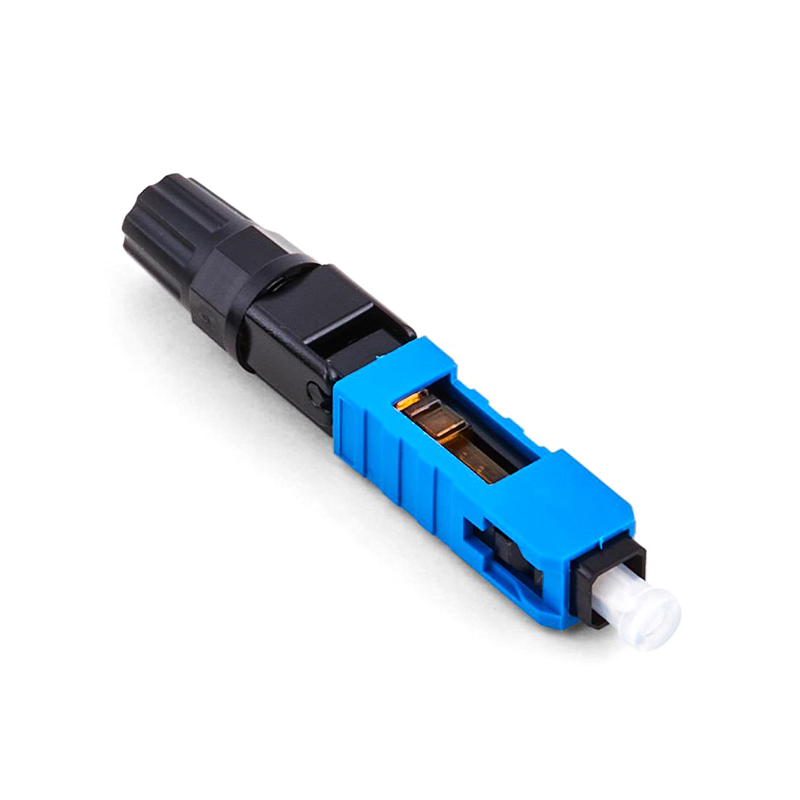

GSG-01W-60mm-UPC Horizontal Fiber Optic Fast connector

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-01W-60mm-UPC Horizontal Fiber Optic Fast connector

GSG-01W-60mm-UPC Horizontal Fiber Optic Fast connector

GSG-01W-60 mm-UPC Horizontal Fiber Optic Fast connector eliminates the need for traditional welding or adhesive steps, significantly shortening installation time and lowering overall costs while enhancing work efficiency.
GSG-01W-60 mm-UPC Horizontal Fiber Optic Fast connector is compatible with various fiber optic cable diameters, offering strong versatility.
GSG-01W-60 mm-UPC Horizontal Fiber Optic Fast connector is an excellent choice for fiber optic network installations.

PREV：GSG-01W-60mm-APC Horizontal Fiber Optic Fast connectorNEXT：GSG-02-53mm-APC Horizontal Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-W01(60mm)-UPC Horizontal
    Length 60mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75*C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
