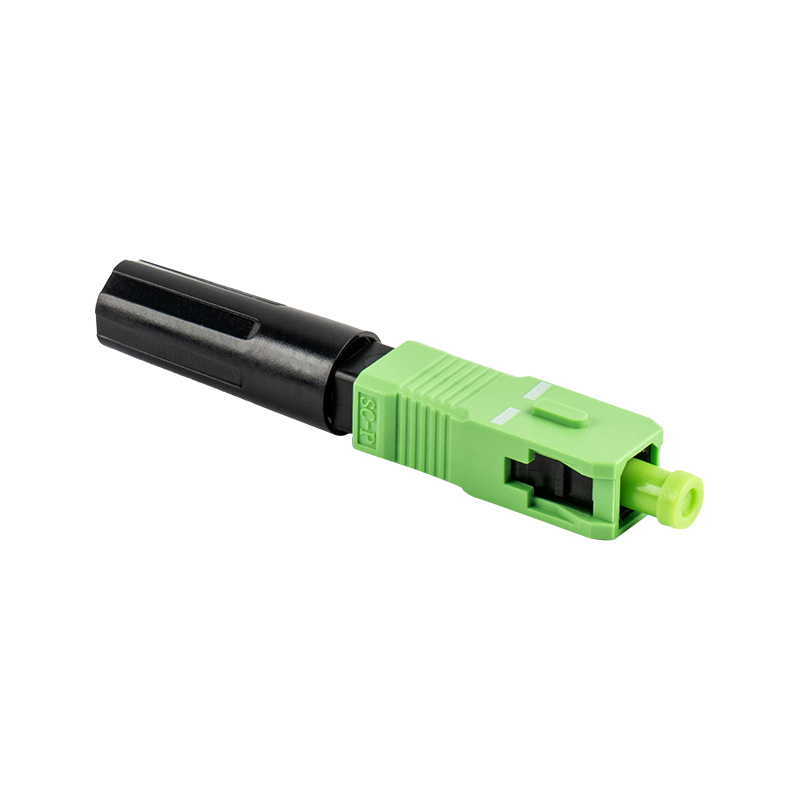

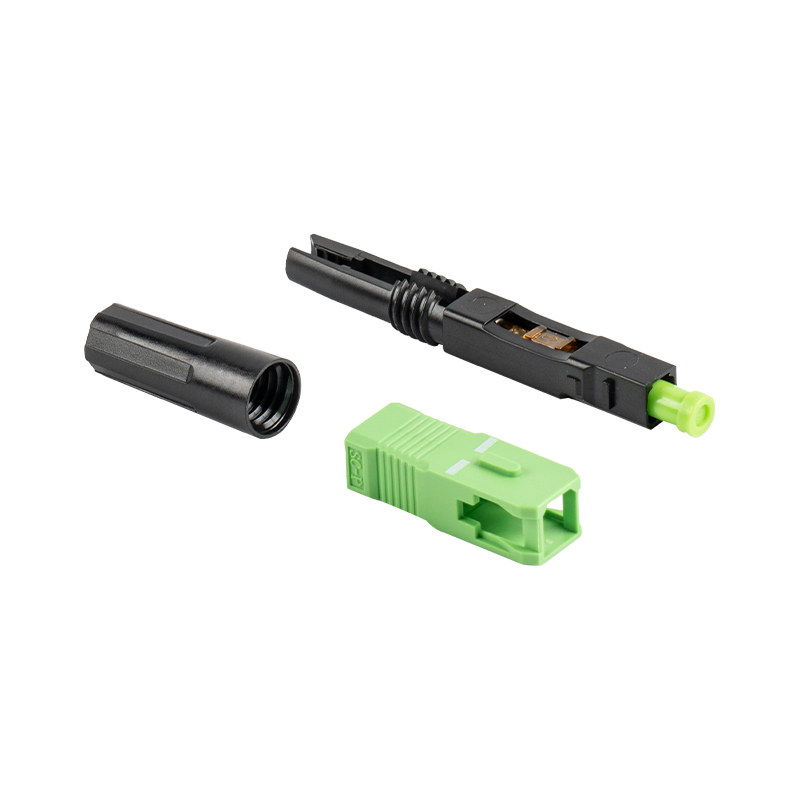

GSG-02-53mm-APC Vertical Fiber Optic Fast connector

The GSG-02-53 mm-APC Vertical Fiber Optic Fast connector takes a short time to install, usually only a few minutes to complete a connection, which improves construction efficiency.
The GSG-02-53 mm-APC Vertical Fiber Optic Fast connector does not require the use of expensive welding equipment or consumables, reducing construction costs.

PREV：GSG-02-53mm-UPC Horizontal Fiber Optic Fast connectorNEXT：GSG-02-53mm-UPC Vertical Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-02-A(53mm)-UPC Vertical
    Length 53mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~ +75 °C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mmRound cable :0.9mm
