GSG-02W-53mm-APC Horizontal Fiber Optic Fast connector

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-02W-53mm-APC Horizontal Fiber Optic Fast connector

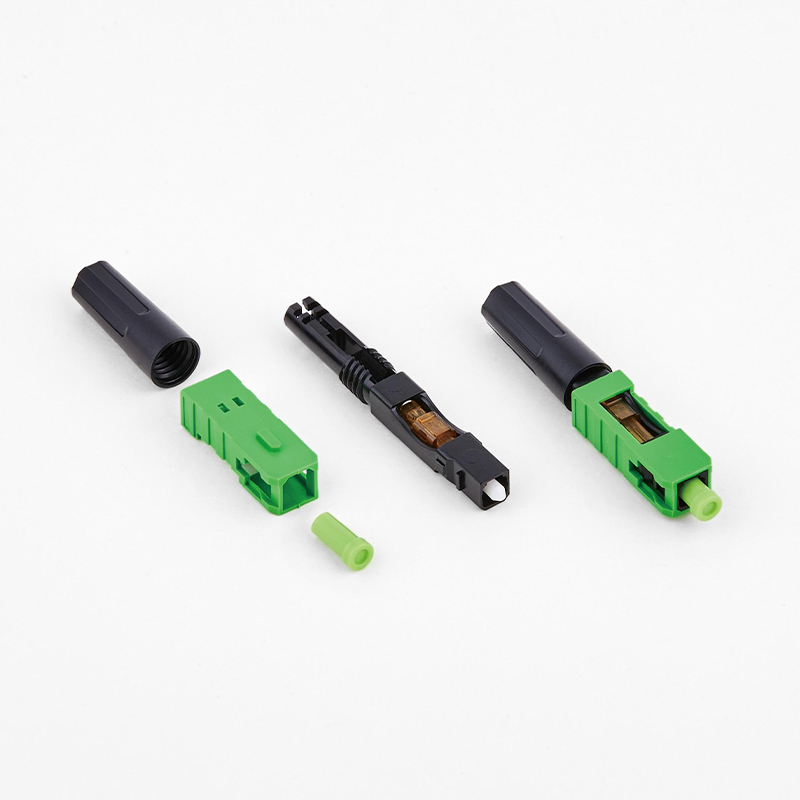

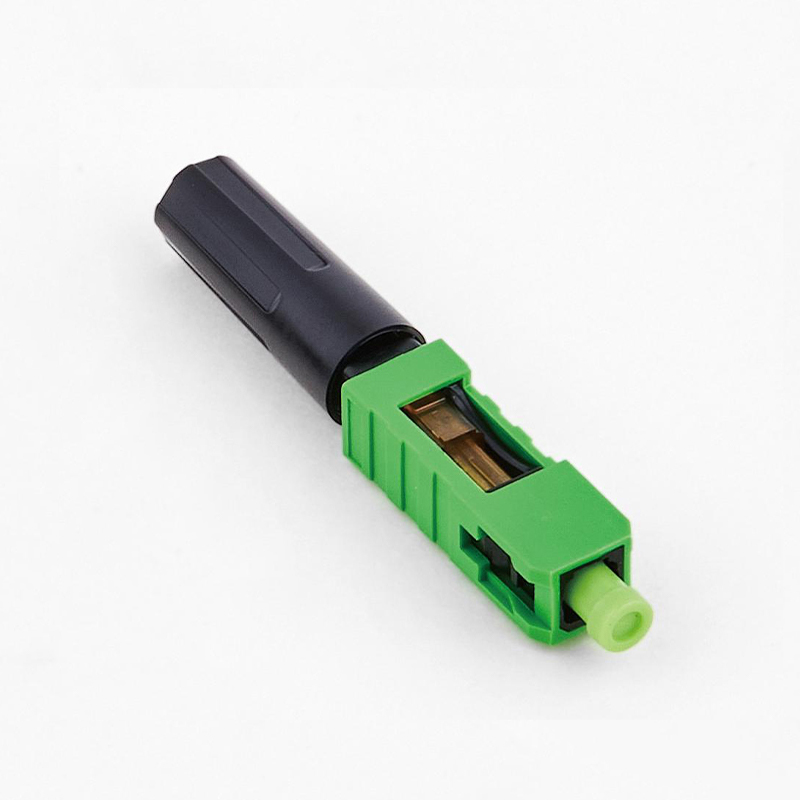

GSG-02W-53mm-APC Horizontal Fiber Optic Fast connector

GSG-02W-53 mm-APC Horizontal Fiber Optic Fast connector can be installed effortlessly without the need for tools, simplifying the process, saving time, and reducing labor costs.
GSG-02W-53 mm-APC Horizontal Fiber Optic Fast connector supports up to 500 plug-in and pull-out cycles, ensuring long-term stability and durability.
GSG-02W-53 mm-APC Horizontal Fiber Optic Fast connector is compatible with for diverse fiber optic communication systems such as data centers, local area networks, and wide area networks.

PREV：GSG-02-53mm-UPC Vertical Fiber Optic Fast connectorNEXT：GSG-02W-53mm-UPC Horizontal Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-W02(53mm)-APC Horizontal
    Length 53mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB .
    Working Temperature -20~ +75 °C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mmRound cable :0.9mm
