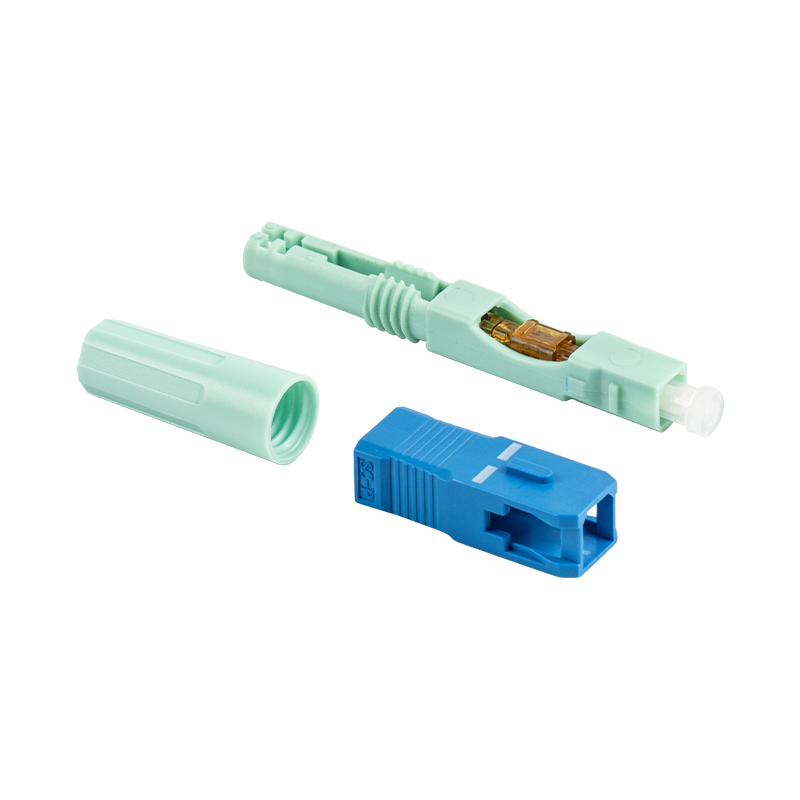

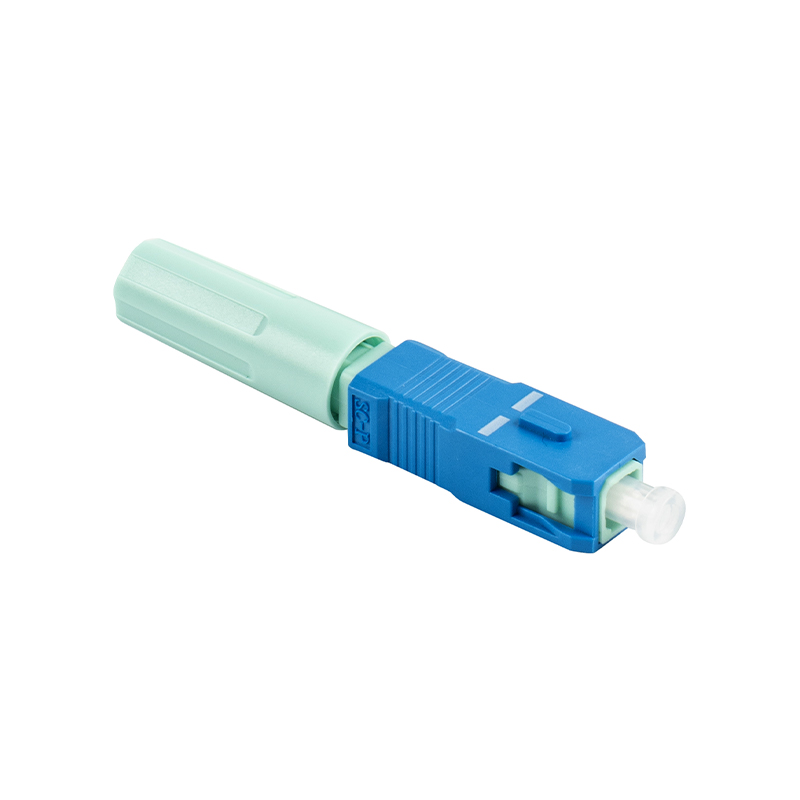

GSG-03-53 mm-UPC Horizontal Fiber Optic Fast connector can be installed effortlessly without the need for tools, it eliminates the need for traditional welding or adhesive steps, significantly shortening installation time and lowering overall costs while enhancing work efficiency.
GSG-03-53 mm-UPC Horizontal Fiber Optic Fast connector is an excellent choice for fiber optic network installations, suitable for diverse fiber optic communication systems such as data centers, local area networks, and wide area networks.
Contact Us
| Item | LX-R03(53mm)-UPC |
| Length | 53mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~ +75°C |
| Storage Temperature | -40~+85°C |
| Mating Times | 500Times |
| Cable Diameter | Drop cable:2.0*3.0mm/2.0*5.0mmRound cable :0.9mm |
