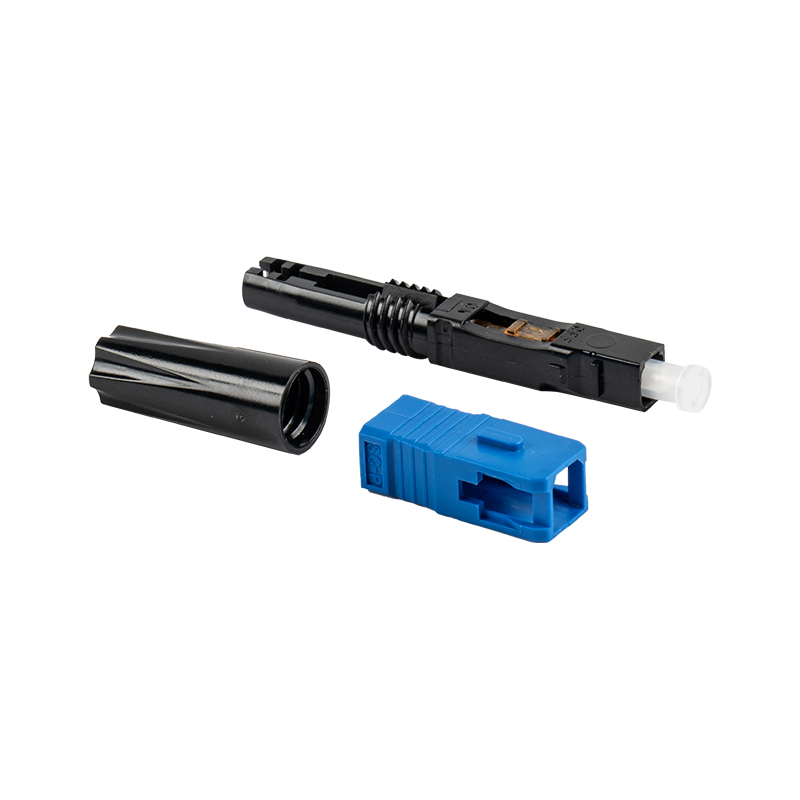

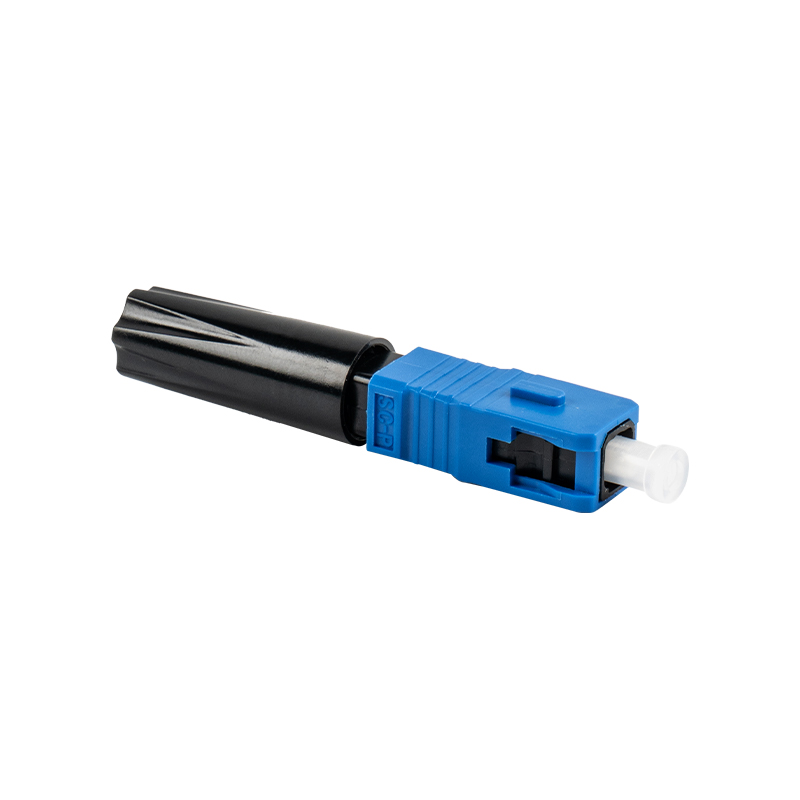

GSG-04-50 mm-APC Vertical Fiber Optic Fast connector's innovative design eliminates the need for conventional welding or adhesive processes, drastically reducing installation time and overall expenses while boosting operational efficiency.
This connector supports up to 500 mating cycles, ensuring long-term reliability and durability. Its compatibility with a wide range of fiber optic cable diameters enhances its versatility, making it suitable for various applications.
GSG-04-50 mm-APC Vertical Fiber Optic Fast connector's low insertion loss and high return loss characteristics guarantee superior signal transmission quality, making it ideal for applications requiring high data integrity and minimal signal degradation.
Contact Us
| ltem | LX-04-A(50mm)-UPC Horizontal |
| Length | 50mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~ +75 °C |
| Storage Temperature | -40~+85 °C |
| Mating Times | 500Times |
| Cable Diameter | Drop cable:2.0*3.0mm/2.0*5.0mmRound cable :0.9mm |
