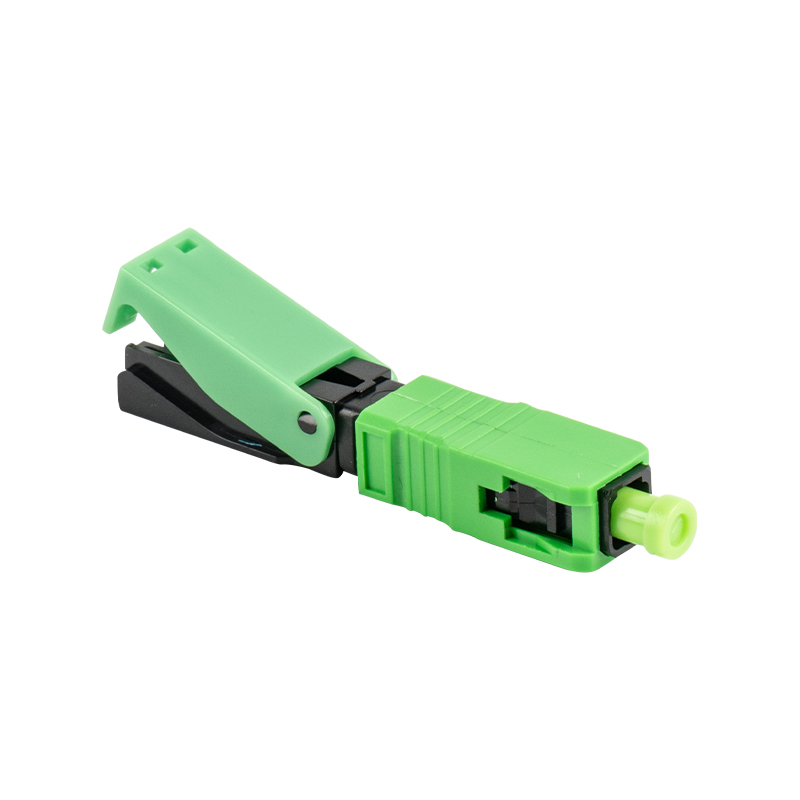

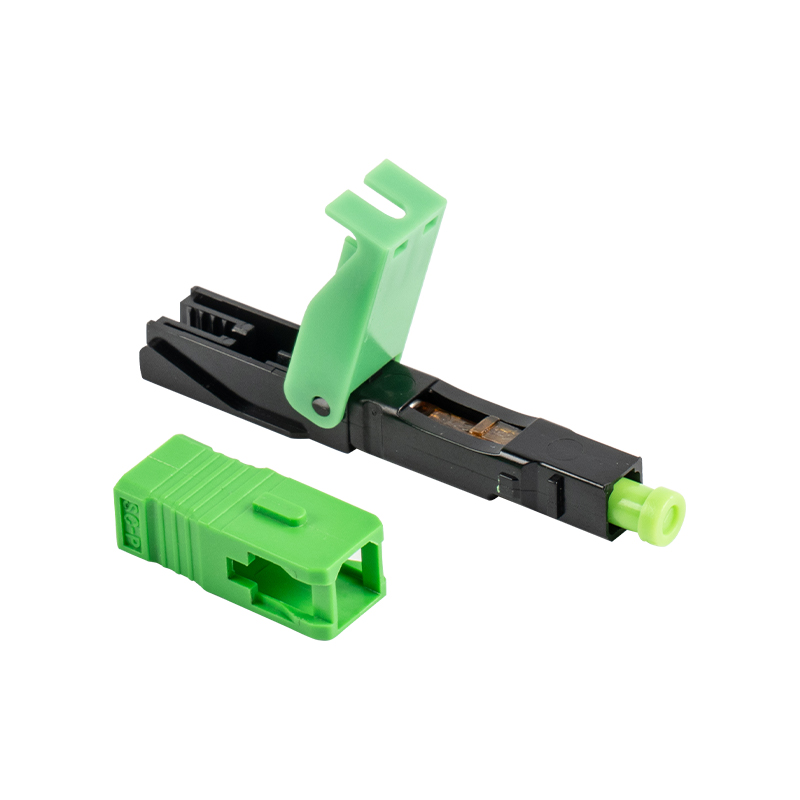

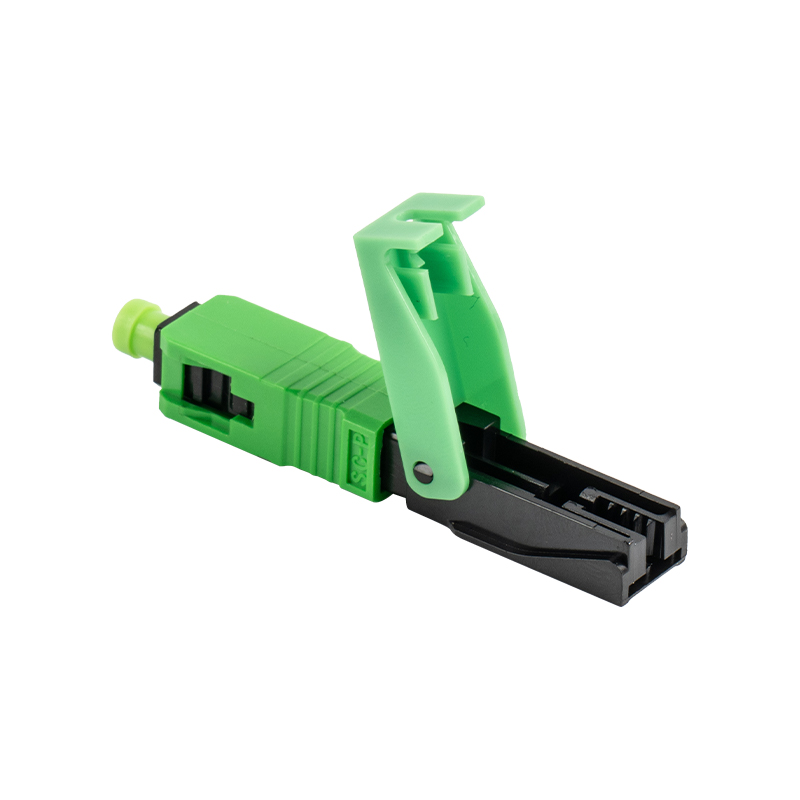

GSG-07-50 mm-APC Fiber Optic Fast connector utilizes pre-polishing technology, enabling rapid and tool-free fiber optic termination on-site. This innovative design eliminates the need for traditional welding or adhesive steps, drastically reducing installation time and overall costs while boosting work efficiency.
GSG-07-50 mm-APC Fiber Optic Fast connector supports up to 500 plug-in and pull-out cycles, ensuring long-term stability and durability. It is compatible with a wide range of fiber optic cable diameters, providing strong versatility.
GSG-07-50 mm-APC Fiber Optic Fast connectorsuitable for various fiber optic communication systems including data centers, local area networks, and wide area networks. Its vertical design optimizes space utilization and enhances ease of use in confined or densely packed environments.
Contact Us
| Item | LX-07-A(50mm)-APC |
| Length | 50mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~+75*C |
| Storage Temperature | -40~ +85°C |
| Mating Times | 500Times |
| Cable Diameter | Drop cable:2.0*3.0mm/2.0* 5.0mm |
Model:
Model:
