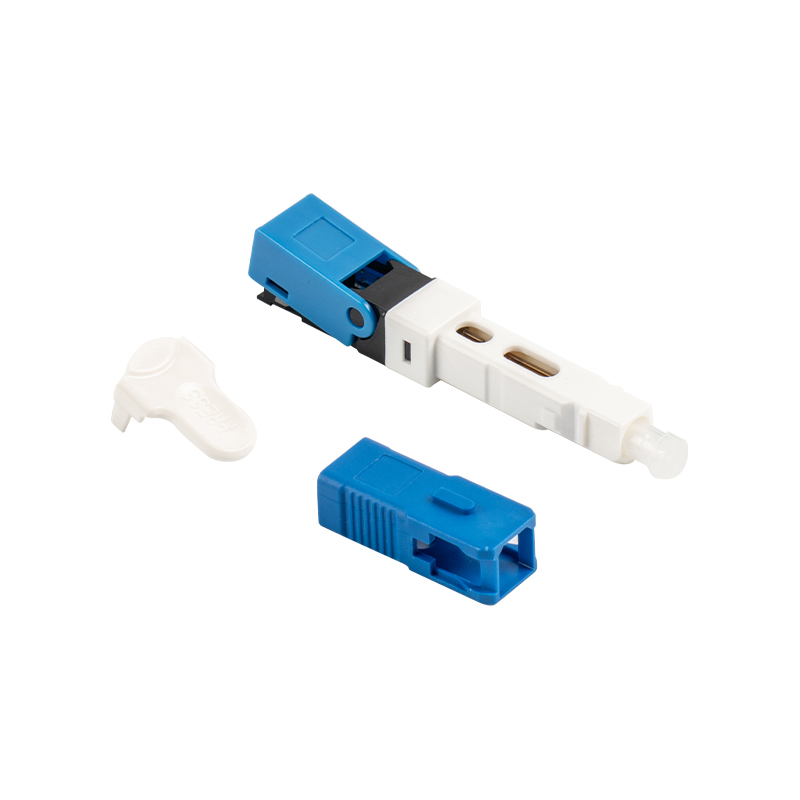

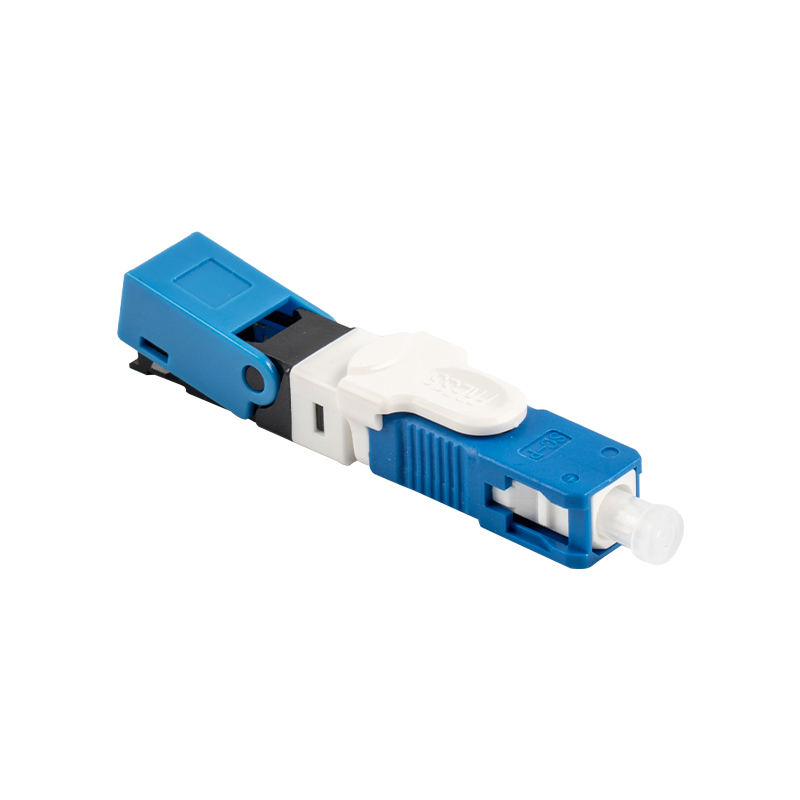

The GSG-09A-52 mm-UPC Fiber Optic Fast connector offers a streamlined installation process that requires no tools, simplifying the setup and reducing both time and labor costs. It eliminates the need for traditional welding or adhesive steps, significantly decreasing installation time and expenses while enhancing work efficiency.
The GSG-09A-52 mm-UPC Fiber Optic Fast connector is an ideal choice for diverse fiber optic communication systems, including data centers, local area networks, and wide area networks, providing reliable and efficient fiber optic network installations.
Contact Us
| Item | LX-09-A(52mm)-UPC |
| Length | 52mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB . |
| Working Temperature | -20~ +75 °C |
| Storage Temperature | -40~+85 °C |
| Mating Times | 500Times |
| Cable Diameter | Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm |
