GSG-14-52mm-APC Fiber Optic Fast connector Manufacturers

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-14-52mm-APC Fiber Optic Fast connector

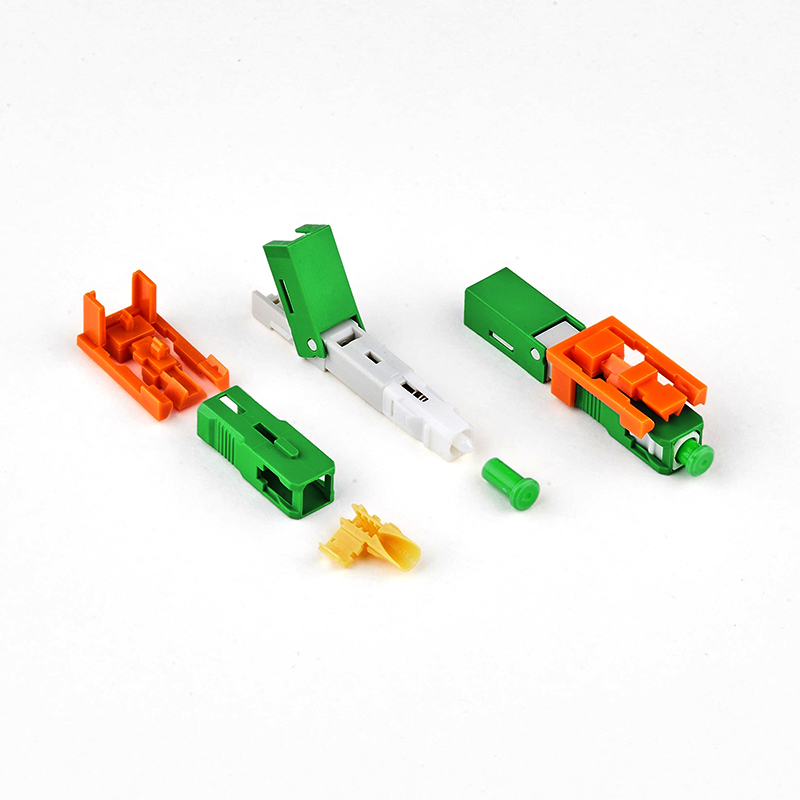

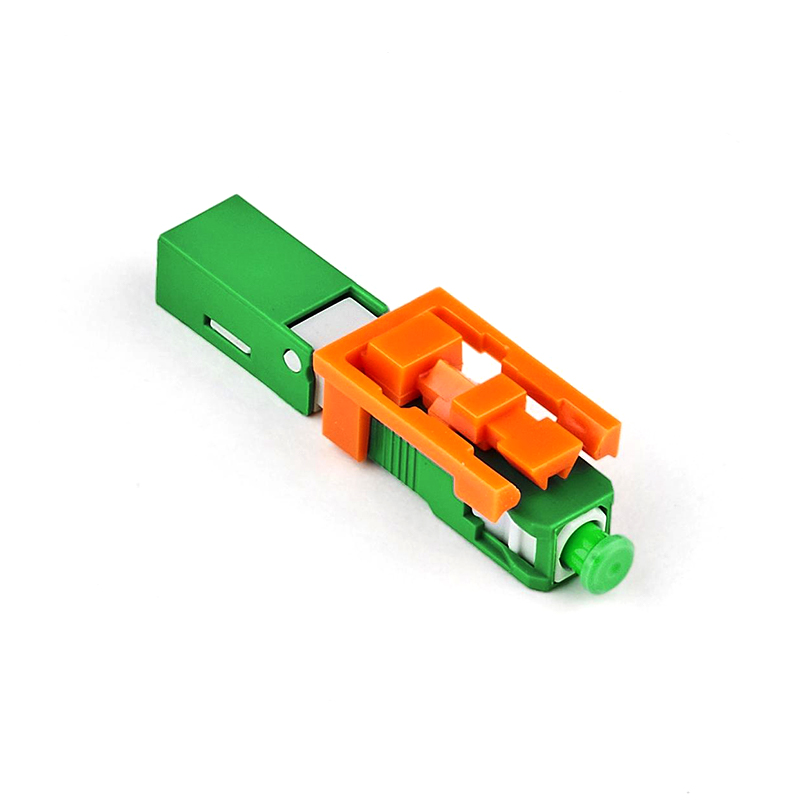

GSG-14-52mm-APC Fiber Optic Fast connector

GSG-14-52 mm-APC Fiber Optic Fast connector adopts advanced fiber pre-installation structure and mechanical cold connection technology to ensure signal transmission quality, suitable for applications with high data integrity requirements.
GSG-14-52 mm-APC Fiber Optic Fast connector is highly adaptable and can be directly connected to indoor cables without additional excess length management, suitable for fiber optic network installation in various environments.
GSG-14-52 mm-APC Fiber Optic Fast connector is easy to reuse and supports multiple repeated connections and removal, avoiding waste of excess fiber length while reducing the complexity of on-site operations.

PREV：GSG-13-T-53mm-UPC Fiber Optic Fast connectorNEXT：GSG-14-52mm-UPC Fiber Optic Fast connector
  • Details
  • contact us
  • ltem LX-14(52mm)-APC
    Length 52mm
    Ferrules SM/UPC/ SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVGs0.3dB MAXs0.5dB
    Return Loss UPC250dB / APC255dB
    Working Temperature -20~ +75C
    Storage Temperature -40~+85*C
    Mating Times 500Times
    Cable Diameter . Drop cable:2.0*3.0mm/2.0*5.0mm
