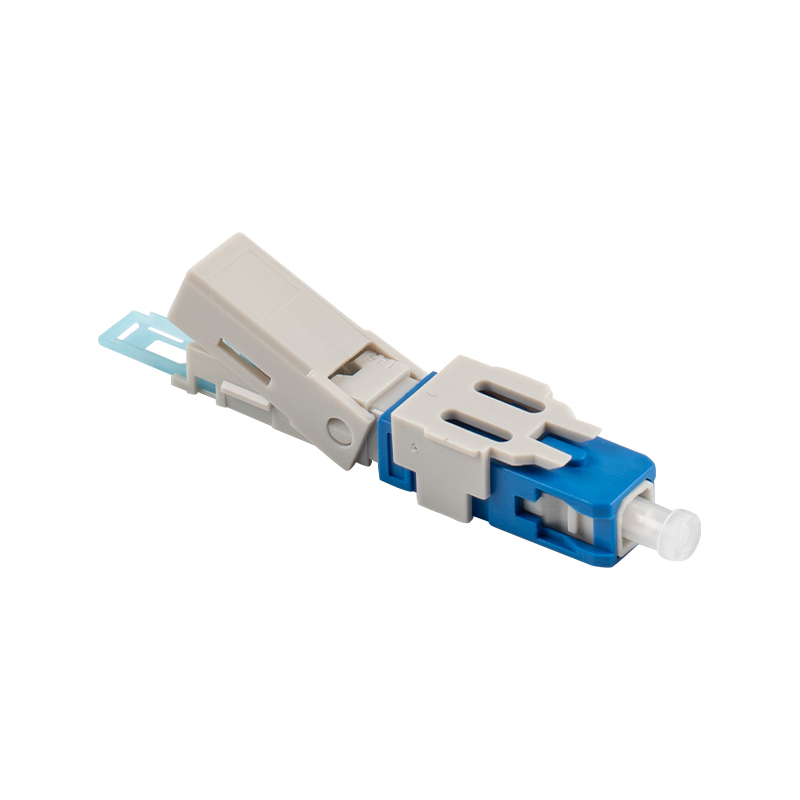

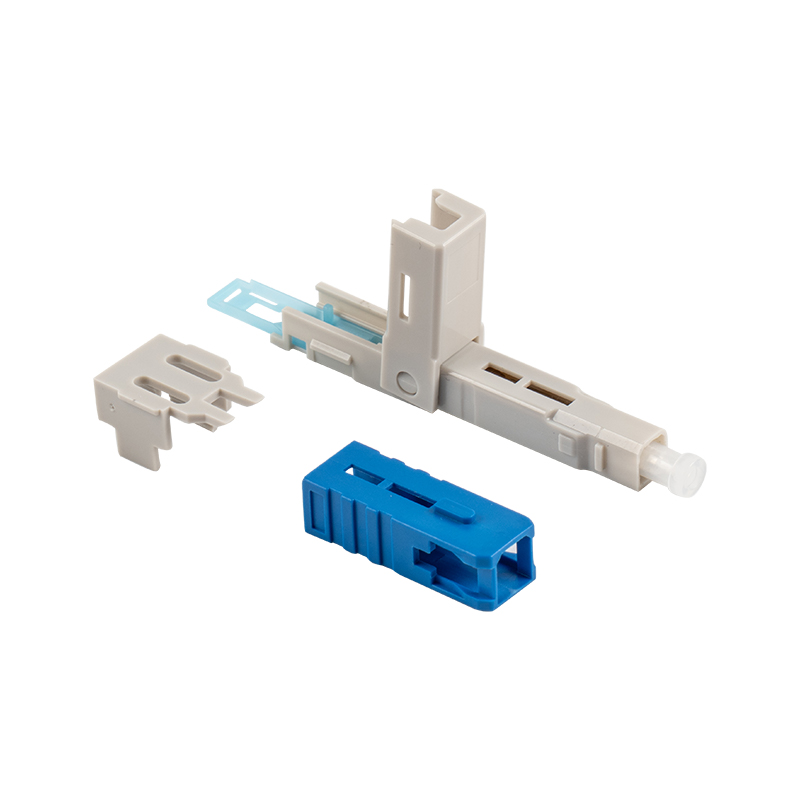

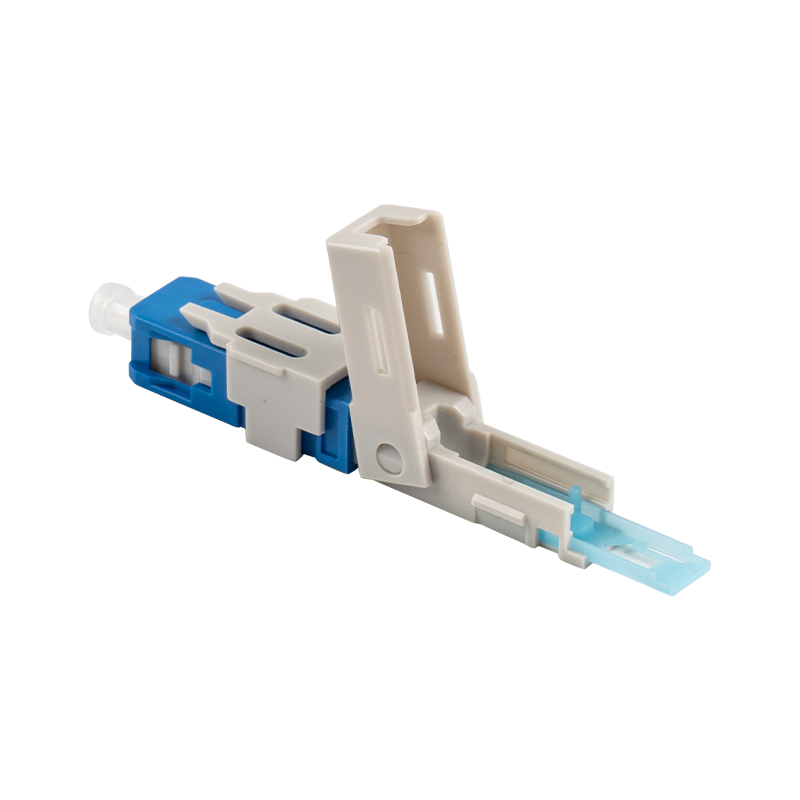

GSG-15-52mm-UPC Fiber Optic Fast connector

GSG-15-52 mm-UPC Fiber Optic Fast connector does not require any tools; only normal fiber preparation tools are needed to quickly complete fiber connection, and the installation time is short.
GSG-15-52 mm-UPC Fiber Optic Fast connector supports multiple plug-in and pull-out operations, avoiding the waste of excess fiber length and reducing the complexity of on-site operations.
GSG-15-52 mm-UPC Fiber Optic Fast connector is highly adaptable and can be directly connected to indoor cables without additional management of excess fiber length. It is suitable for fiber optic network installation in various environments.

PREV：GSG-15-52mm-APC Fiber Optic Fast connectorNEXT：GSG-16-52mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-DR15(52mm)-UPC
    Length 52mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAXs0.5dB
    Return Loss UPCz50dB / APC255dB
    Working Temperature -20~+75*C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm
