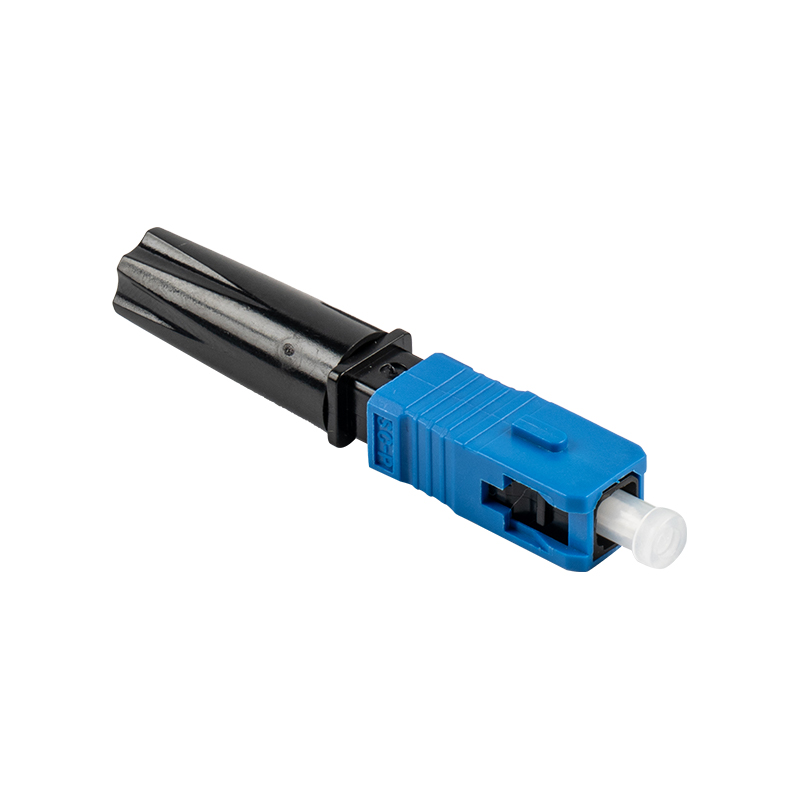

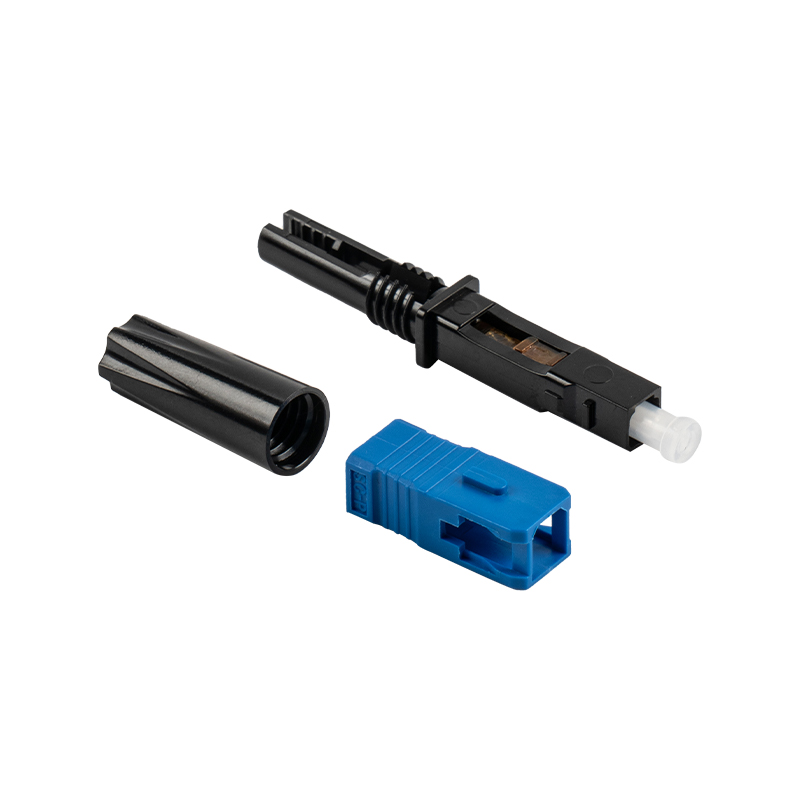

GSG-21-53mm-UPC Fiber Optic Fast connector

GSG-21-53 mm-UPC Fiber Optic Fast connector can be quickly reused. The connector supports multiple repeated connections and disconnections, which is suitable for scenarios where fiber lines are frequently maintained or replaced.
Reduce the excess fiber length and connector storage to avoid wasting materials, while having a long service life and low maintenance costs.
GSG-21-53 mm-UPC Fiber Optic Fast connector is best suited for FTTH (fiber to the home) designs. It uses mechanical connection technology without the need for glue, polishing, or expensive baking equipment. The installation process is simple and quick, and the connection can usually be completed in just a few minutes.

PREV：GSG-21-53mm-APC Fiber Optic Fast connectorNEXT：GSG-22-51mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-R21(53mm)-UPC
    Length 53mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB .
    Working Temperature -20~+75*C
    Storage Temperature -40~+85 °C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
