Mini SC-L02-UPC-Waterproof Fast connector

Home / Product / Pre-Connectorized ODN Solution / Waterproof connector / Mini SC-L02-UPC-Waterproof Fast connector

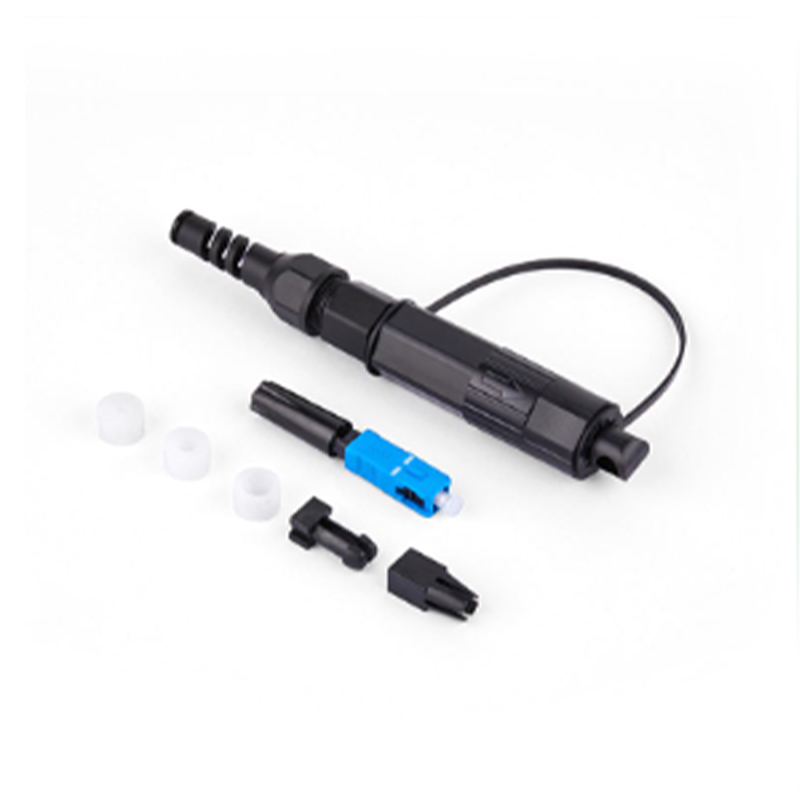

Mini SC-L02-UPC-Waterproof Fast connector

MINI-SC-L02-UPC quick-connect waterproof joint adopts pre-connection technology. There is no need to fuse optical fibers on site. The optical fiber connection can be completed by simple plugging and unplugging, which significantly shortens the construction time and improves installation efficiency.

PREV：Mini SC-L02-APC-Waterproof Fast connectorNEXT：OptiTap SC-L02-APC-Waterproof Fast connector
  • Details
  • contact us

  • Specification

    MINI-SC-L02-UPC Quick Waterproof Connector

    Ferrules

    SM/UPC / SM/APC

    Ferrule Inner Diameter

    125 μm

    Insertion Loss

    Avg ≤ 0.3dB / Max ≤ 0.5dB

    Return Loss

    UPC ≥ 50dB / APC ≥ 55dB

    Operating Temperature

    -20°C to +75°C

    Storage Temperature

    -40°C to +85°C

    Mating Cycles

    500 times

    Cable Diameter

    Drop Cable: 2.0×3.0mm / 2.0×5.0mm / 2.0×1.6mm
    Round Cable: 5.0mm / 3.0mm / 2.0mm
