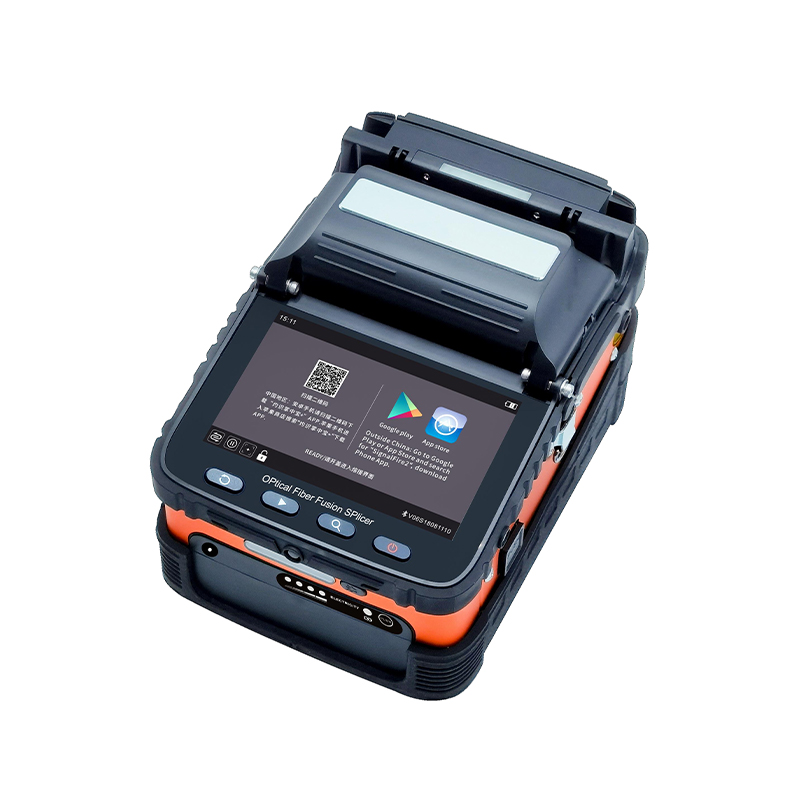

Ai-6A Fiber Optic Fusion Machine

The AI-20, the fourth-generation fiber fusion splicer developed by Signal
Fire is the latest generation of fiber fusion splicer designed for full link
integration. It combines Signal Fire's latest research and development of a
delayed return electric one-step cleaver with fiber fusion splicing, while
integrating OPM and VFL functions. Combined with a nine-in-one
signalfire fiber stripper, a combinable workbench and worktable, it truly
becomes a compact, lightweight, and easy-to-operate fiber fusion splicer,
which will greatly improve your work efficiency.

Contact Us

Details
contact us

Parameter	Specification
Fiber Alignment	Real-time luminous flux assisted alignment (Only for stable optical signal environments like data centers)
Motor System	8-motor precision alignment (Accuracy: 0.1μm)
Splicing Time	6 seconds
Heating Mode	16s (Customizable based on environment)
Fiber Compatibility	Single-mode (SMF2.0.5G, BIFO.667); Supports SM/MM/bare fiber/pigtail/drop cable/jumper/invisible fiber
Cladding Diameter	80–160 μm
Splicing Loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DSF/NZDS)
Splicing Mode	Auto core alignment; Standard/High-precision splicing
Operation Mode	Fully automatic / Semi-automatic / Manual
Fiber Cleaver	High-precision electric cleaver with one-step operation
Fiber Holder	Universal 3-in-1 design (SM/MM/multi-core/bare fiber/pigtail/jumper/drop cable)
VFL (Visual Fault Locator)	Built-in 150mW, 2Hz flashing or steady mode
OPM (Optical Power Meter)	Wavelengths: 850/980/1270/1300/1310/1450/1550/1577/1625/1800nm; Range: 50–300dBm; Error: <0.3dB
Battery	7800mAh Li-ion (Charging ≤3.5h; ~240 splices per charge)
Magnification	330x (X/Y single axis), 200x (X/Y dual axis)
Fiber Diameter	Coating: 80–150μm / Cladding: 100–1000μm
Cleave Length	Coating ≤250μm: 8–10mm; Coating 250–1000μm: 10mm
Heat Shrink Tubing	25mm, 40mm, 60mm
Tensile Test	Standard 2N
Display	5-inch TFT color screen
Boot Time	1 second
Data Storage	Local: 1000 records; Cloud sync via server (unlimited)
Wireless	Bluetooth 4.2 (2.4GHz, range ≤80m)
Software Updates	OTA via mobile app or Bluetooth sync
Management	Owner privilege control; Remote monitoring via app (splice count/time/loss); Multi-device management
Return Loss	>60dB
Protection Rating	Waterproof, dustproof, shockproof
Power Input	AC 100–240V 50/60Hz; Output: DC 13.5V/4.8A; Real-time battery monitoring
Operating Conditions	Temp: -15°C to +90°C; Humidity: <95% RH (non-condensing); Altitude: 0–5000m; Max wind: 15m/s
