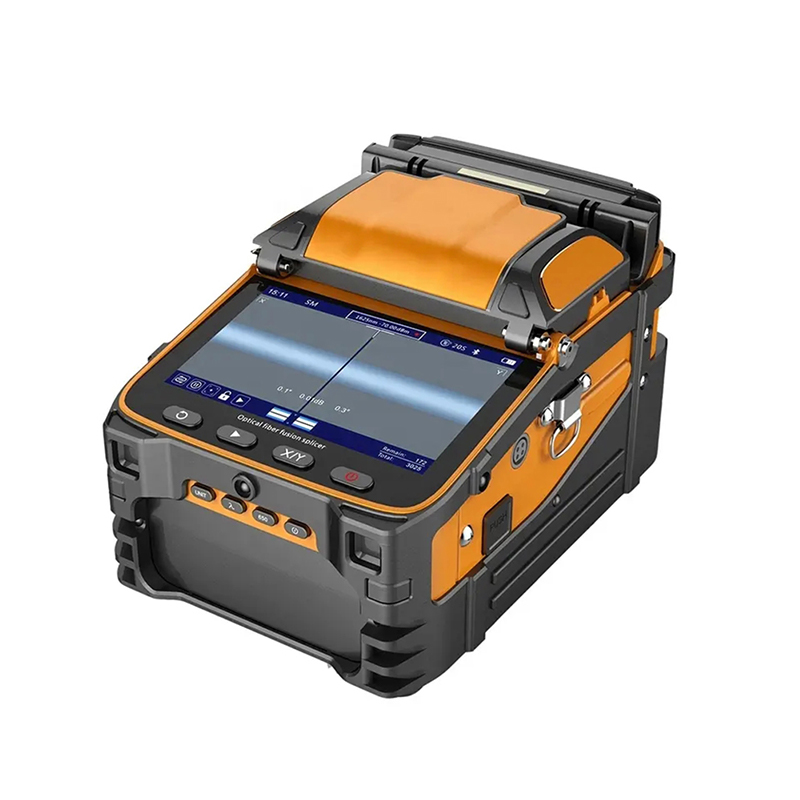

Ai-9 Fiber Optic Fusion Machine

The AI-30, the fourth-generation fiber fusion splicer developed by Signal
Fire is the latest generation of fiber fusion splicer designed for full link
integration. It combines Signal Fire's latest research and development of a
delayed return electric one-step cleaver with fiber fusion splicing, while
integrating OPM and VFL functions. Combined with a nine-in-one
signalfire fiber stripper, a combinable workbench and worktable, it truly
becomes a compact, lightweight, and easy-to-operate fiber fusion splicer,
which will greatly improve your work efficiency

Contact Us

Details
contact us

Parameter	Specification
Fiber Alignment	Real-time luminescence-assisted alignment (for stable optical signal environments)
Motor System	6-motor precision alignment (0.05μm accuracy)
Splicing Time	6 seconds
Heating Mode	15s (customizable based on environment)
Fiber Compatibility	Single-mode (SMF/G.652, BIF/G.657); supports SM/MM/bare fiber/pigtail/drop cable/jumper/invisible fiber
Cladding Diameter	80-150μm
Splicing Loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DSF/NZDS)
Splicing Mode	Auto core alignment; Standard/High-precision splicing
Operation Mode	Automatic/Semi-automatic/Manual
Fiber Cleaver	High-precision electric one-step cleaver
Fiber Holder	Universal 3-in-1 fixture (SM/MM/multi-core/bare fiber/pigtail/jumper/drop cable)
VFL (Visual Fault Locator)	Built-in 1.5 mW, 2Hz flashing or steady mode
OPM (Optical Power Meter)	Wavelengths: 850/980/1270/1300/1310/1450/1550/1577/1625nm; Range: -50 to +3 dBm; Error: ±0.3dB
Battery	5200mAh Li-ion (3.5h charge; ~240 splices)
Magnification	320x (single axis), 200x (dual axis)
Fiber Diameter	Coating: 80-150μm; Cladding: 100-1000μm
Cleave Length	≤250μm coating: 8-10mm; 250-1000μm: 16mm
Heat Shrink Tubing	25mm, 40mm, 50mm, 60mm
Tensile Test	Standard 2N
Display	5-inch TFT color screen
Boot Time	1 second
Data Storage	Local: 1000 records; Cloud sync available
Wireless	Bluetooth 4.2 (2.4GHz, ≤60m range)
Software Updates	OTA via mobile app/Bluetooth
Management Features	Remote monitoring (splice records/time/loss); Multi-device management; Usage limits configurable
Return Loss	>60dB
Protection Rating	IP54 (Waterproof, dustproof, shockproof)
Power Input	AC 100-240V 50/60Hz; Output: DC 13.8V/8A
Operating Conditions	Temp: -15°C to +50°C; Humidity: <95% RH; Altitude: 0-5000m; Max wind: 15m/s
