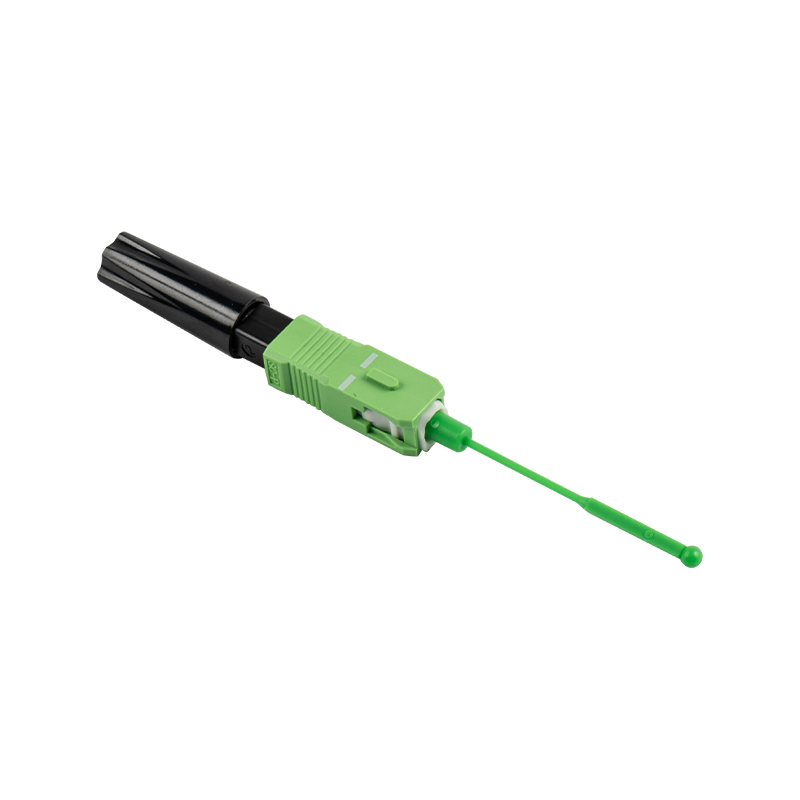

GSG-RS58-58mm-APC Fiber Optic Fast connector

GSG-RS58-58 mm-APC Fiber Optic Fast connector is designed with the user in mind. Its intuitive design makes it easy to handle and install, even for less experienced technicians. The connector's components are clearly labeled and easy to identify, further simplifying the installation process.

PREV：GSG-RS09-0.9mm-UPC Fiber Optic Fast connectorNEXT：GSG-RS58-58mm-UPC Fiber Optic Fast connector
  • Details
  • contact us
  • Item Hot melt-RS58(58mm)-APC
    Length 58mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of FRRules 125um
    Insertion Loss MAX≤0.3dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature  -20~. +75*C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable:5.0mm/3.0mm/2.0mm/0.9mm
