GSG-RS58-58mm-UPC Fiber Optic Fast connector Manufacturers

Home / Product / Fiber Optic Fast Connector / Hot melt Series Fiber Optic Fast connector / GSG-RS58-58mm-UPC Fiber Optic Fast connector

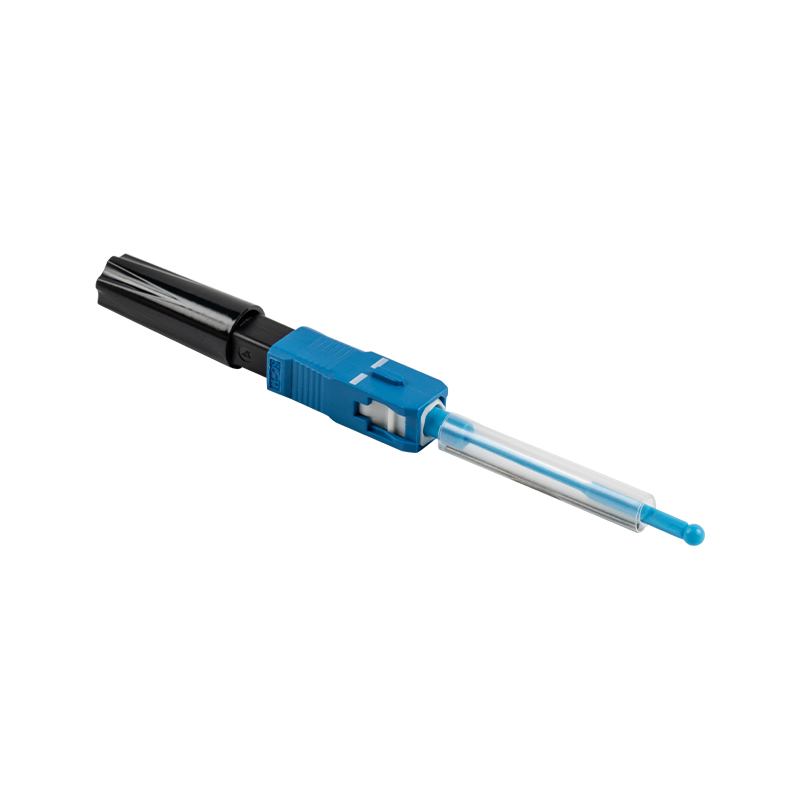

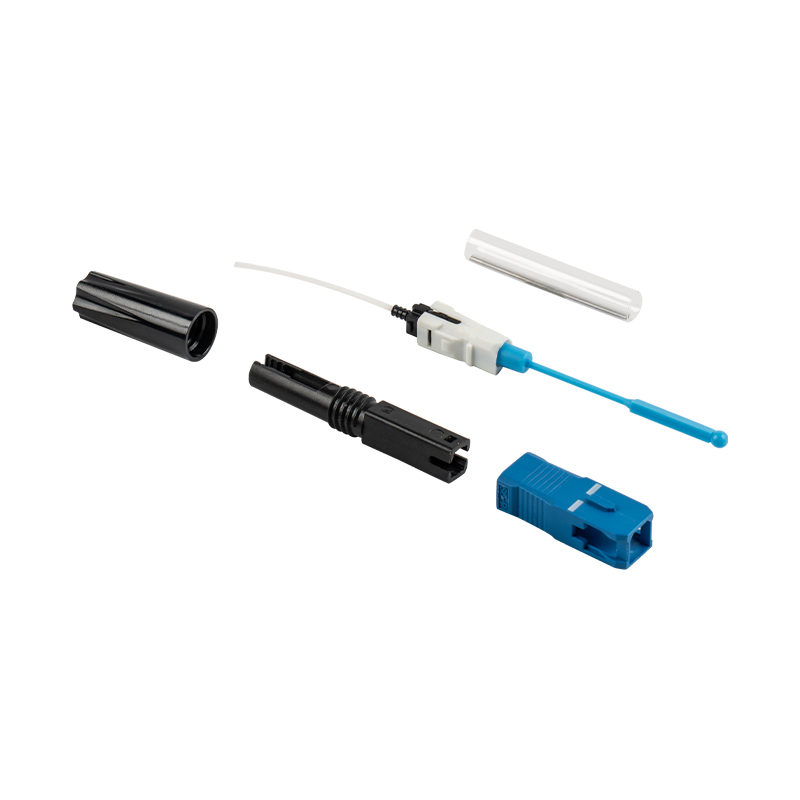

GSG-RS58-58mm-UPC Fiber Optic Fast connector

GSG-RS58-58 mm-UPC Fiber Optic Fast connector features an UPC end face, which minimizes back reflection and enhances signal quality .The UPC end face ensures a clean and precise connection, reducing signal loss and improving overall network performance.

PREV：GSG-RS58-58mm-APC Fiber Optic Fast connectorNEXT：GSG-RL09-0.9mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item Hot melt-RS58(58mm)-UPC
    Length 58mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of FRRules 125um
    Insertion Loss MAX≤0.3dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature  -20~ +75 °C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
