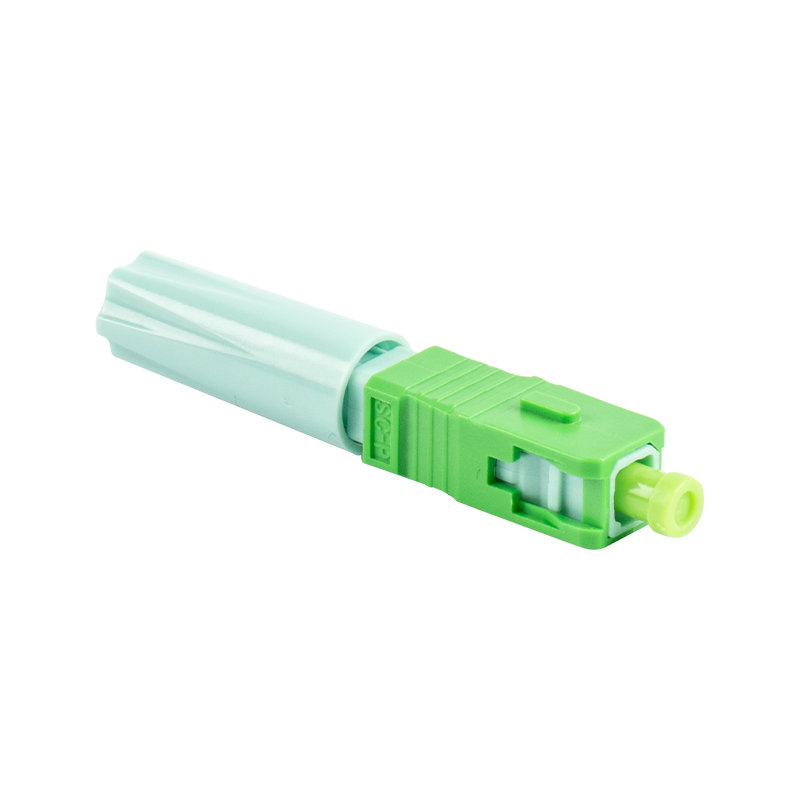

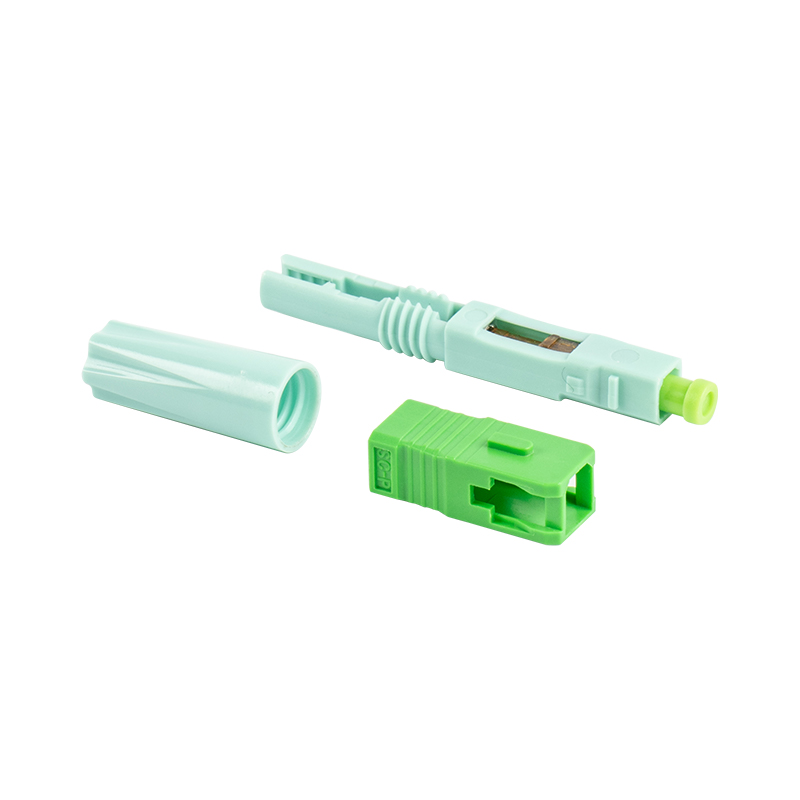

GSG-05-50 mm-APC Vertical Fiber Optic Fast connector offers a streamlined installation process, eliminating the need for tools and simplifying the setup. This design significantly reduces installation time and labor costs by bypassing traditional welding or adhesive steps.
With GSG-05-50 mm-APC Vertical Fiber Optic Fast connector robust construction, it supports up to 500 plug-in and pull-out cycles, ensuring long-term stability and durability.
GSG-05-50 mm-APC Vertical Fiber Optic Fast connector is an ideal solution for various fiber optic communication systems, including data centers, local area networks, and wide area networks, providing reliable and efficient network connectivity.
Contact Us
| Item | LX-R05(50mm)-APC |
| Length | 50mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~ +75 °C |
| Storage Temperature | -40~+85°C |
| Mating Times | 500Times |
| Cable Diameter | Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm |
