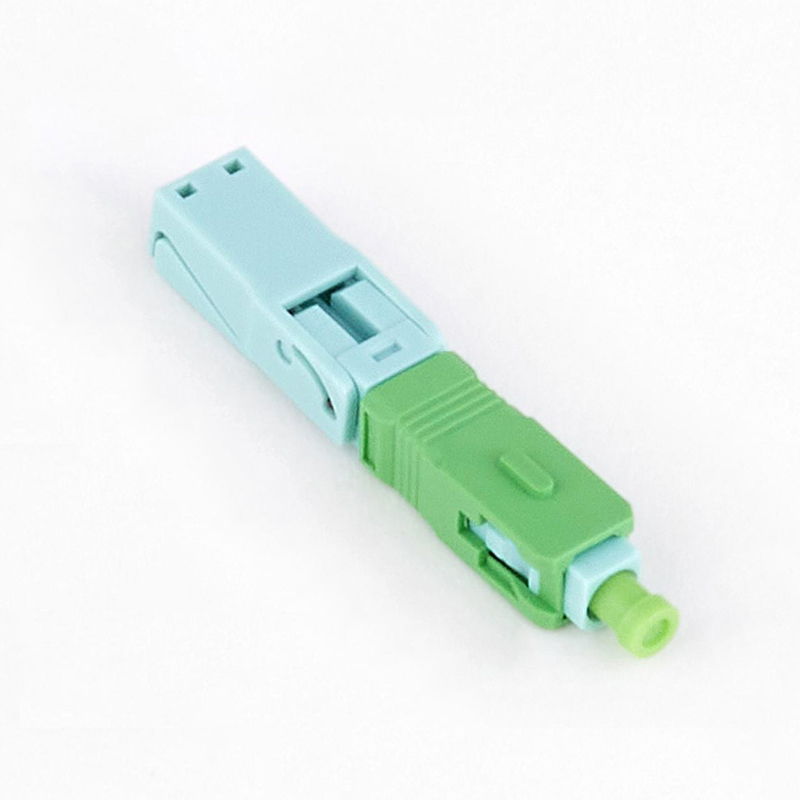

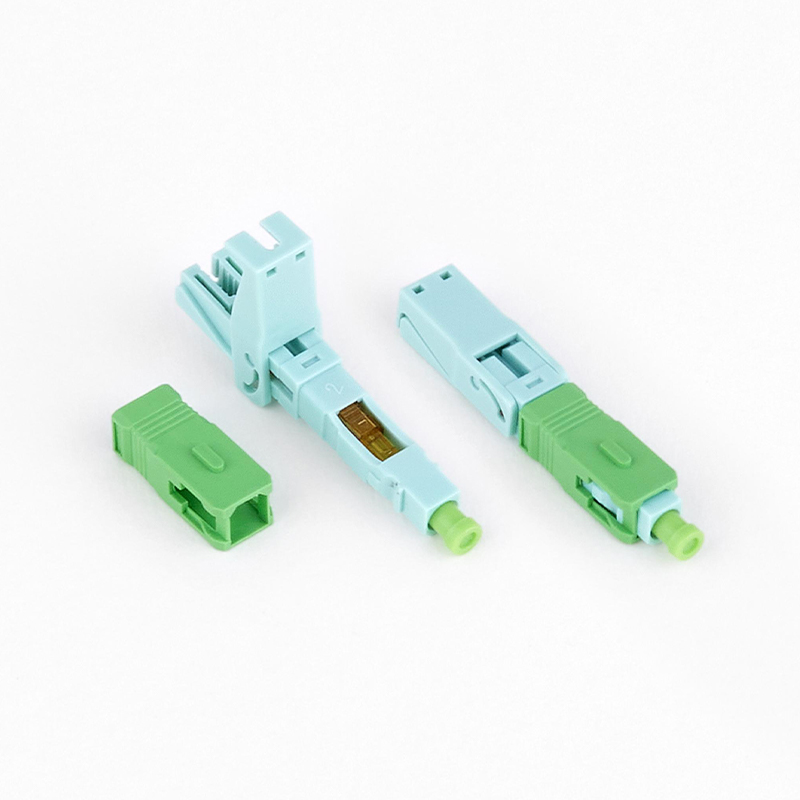

GSG-07OS-50mm-APC Fiber Optic Fast connector

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-07OS-50mm-APC Fiber Optic Fast connector

GSG-07OS-50mm-APC Fiber Optic Fast connector

GSG-07OS-50 mm-APC Fiber Optic Fast connector utilizes advanced pre-polishing technology, enabling rapid and tool-free fiber optic termination on-site. This connector can be effortlessly installed without the need for tools, simplifying the process, saving time, and reducing labor costs. It eliminates the need for traditional welding or adhesive steps, significantly cutting down on installation time and expenses while boosting work efficiency.
GSG-07OS-50mm-APC Fiber Optic Fast connector suitable for diverse fiber optic communication systems such as data centers, local area networks, and wide area networks. It enhances the efficiency and reliability of fiber optic connections, making it a reliable solution for modern communication infrastructure.

  • Item LX-OS07-B(50mm)-APC
    Length 50mm
    Ferrules SM/UPC/ SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVGs0.3dB MAX<0.5dB
    Return Loss UPC250dB / APCz55dB
    Working Temperature -20~+75*C
    Storage Temperature -40~+85°C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.+5.mm
