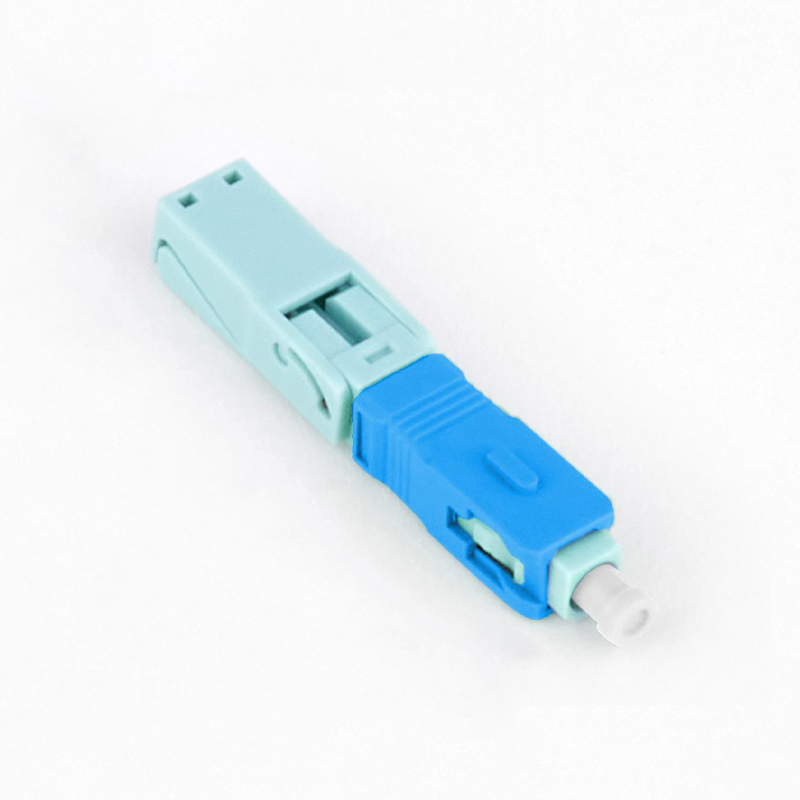

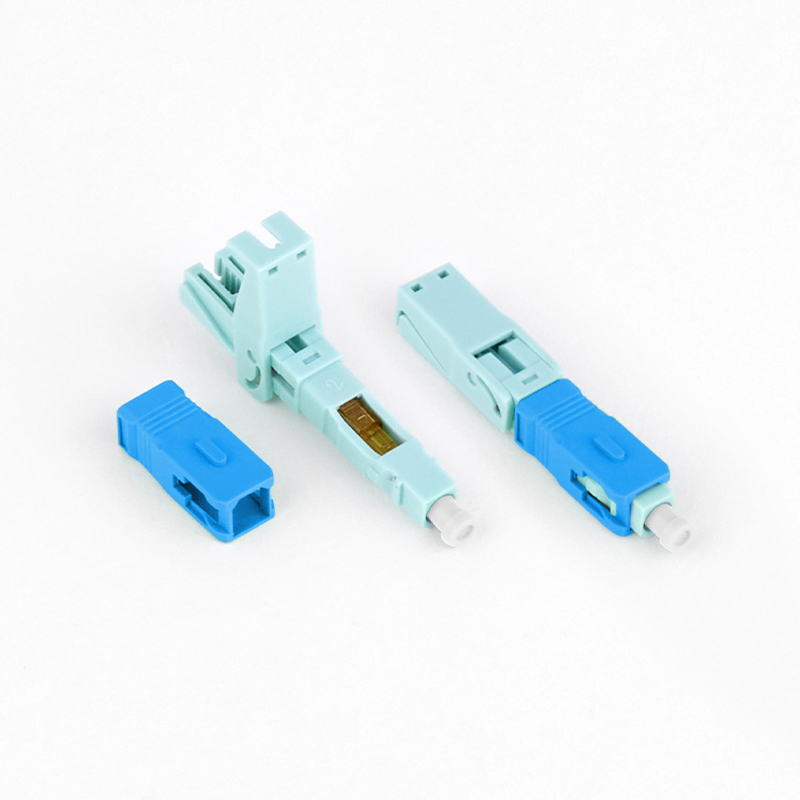

GSG-07OS-50mm-UPC Fiber Optic Fast connector

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-07OS-50mm-UPC Fiber Optic Fast connector

GSG-07OS-50mm-UPC Fiber Optic Fast connector

The GSG-07OS-50 mm-UPC Fiber Optic Fast connector offers a streamlined installation process, eliminating the need for tools and simplifying the setup. This design significantly reduces installation time and labor costs by bypassing traditional welding or adhesive steps, thereby enhancing overall work efficiency.
With a robust construction, GSG-07OS-50 mm-UPC Fiber Optic Fast connector supports up to 500 plug-in and pull-out cycles, ensuring long-term stability and durability. This makes it a reliable choice for various fiber optic network installations, including data centers, local area networks, and wide area networks.
Engineered for versatility, the GSG-07OS-50 mm-UPC Fiber Optic Fast connector can operate effectively across a broad range of working and storage temperatures, ensuring consistent performance in diverse environments. Its low insertion loss and high return loss characteristics guarantee superior signal transmission quality, making it ideal for applications that demand high data integrity and minimal signal degradation.

  • Item LX-OS07-B(50mm)-UPC
    Length 50mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB .
    Working Temperature -20~+75*C
    Storage Temperature -40~+85 °C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mm
