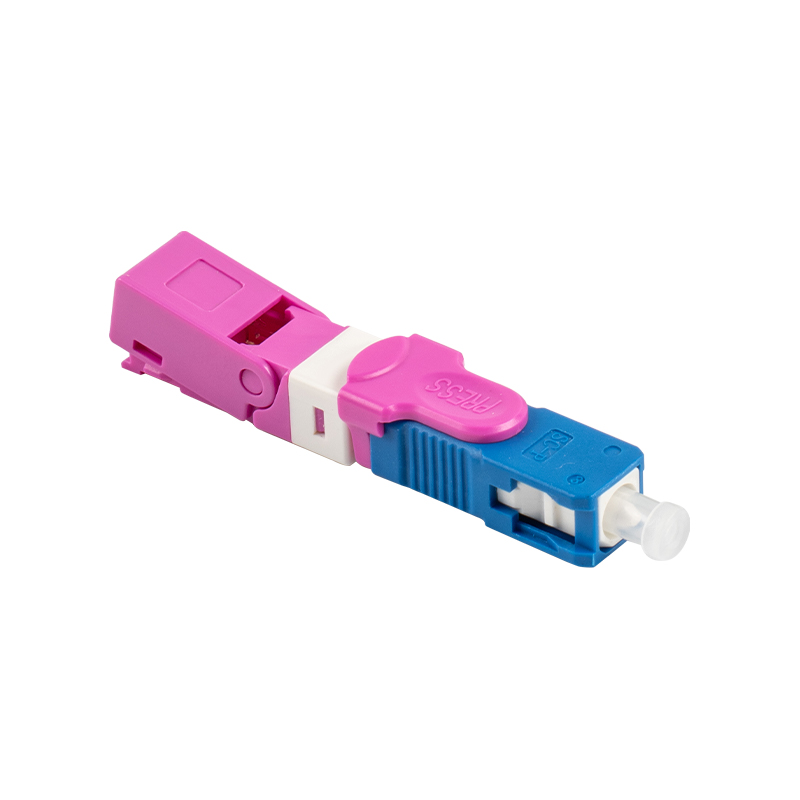

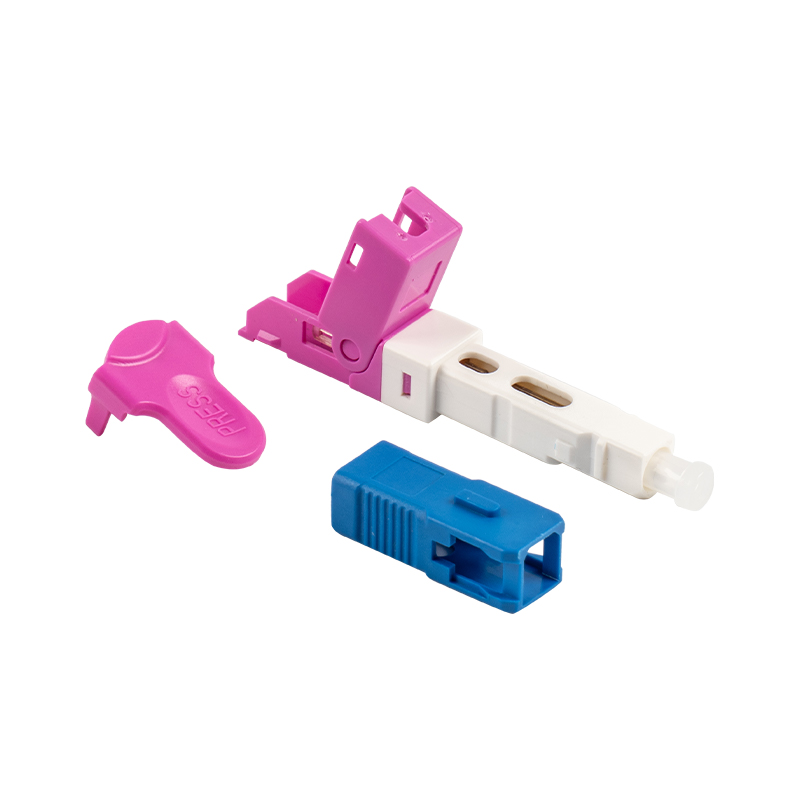

GSG-09D-52mm-UPC Fiber Optic Fast connector

GSG-09D-52 mm-UPC Fiber Optic Fast connector has a plug-and-play design, which shortens the construction period and improves overall work efficiency.
GSG-09D-52 mm-UPC Fiber Optic Fast connector has a compact structure, which is easy to install in a small space and adapts to complex construction environments.
GSG-09D-52 mm-UPC Fiber Optic Fast connector has an optimized structural design to ensure stable optical performance in long-term use.

PREV：GSG-09D-52mm-APC Fiber Optic Fast connectorNEXT：GSG-09E-52mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-09D-52mm-UPC
    Length 52mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB .
    Working Temperature -20~+75°C
    Storage Temperature -40~+85 °C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm
