GSG-09E-52mm-APC Fiber Optic Fast connector

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-09E-52mm-APC Fiber Optic Fast connector

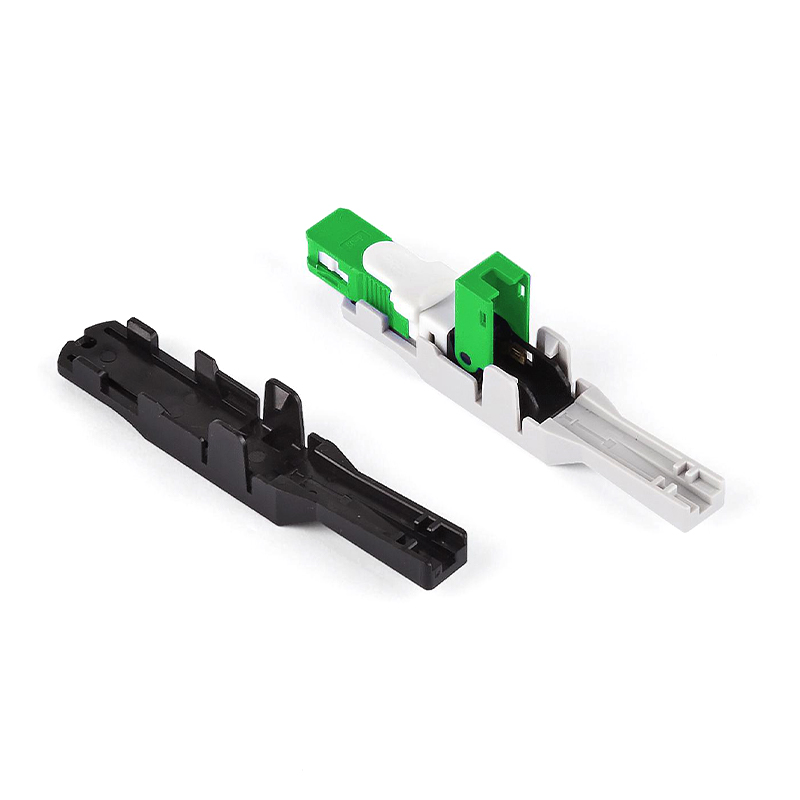

GSG-09E-52mm-APC Fiber Optic Fast connector

GSG-09E-52 mm-APC Fiber Optic Fast connector is designed to quickly complete fiber termination processing without the use of traditional fusion splicing equipment or complex tools. Only basic fiber preparation tools (such as strippers and fiber strippers) are required to complete the installation, significantly shortening the installation time.

PREV：GSG-09D-52mm-UPC Fiber Optic Fast connectorNEXT：GSG-09E-52mm-UPC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-09E-52mm-APC
    Length 52mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB .
    Working Temperature -20~+75°C
    Storage Temperature -40~+85 °C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm
