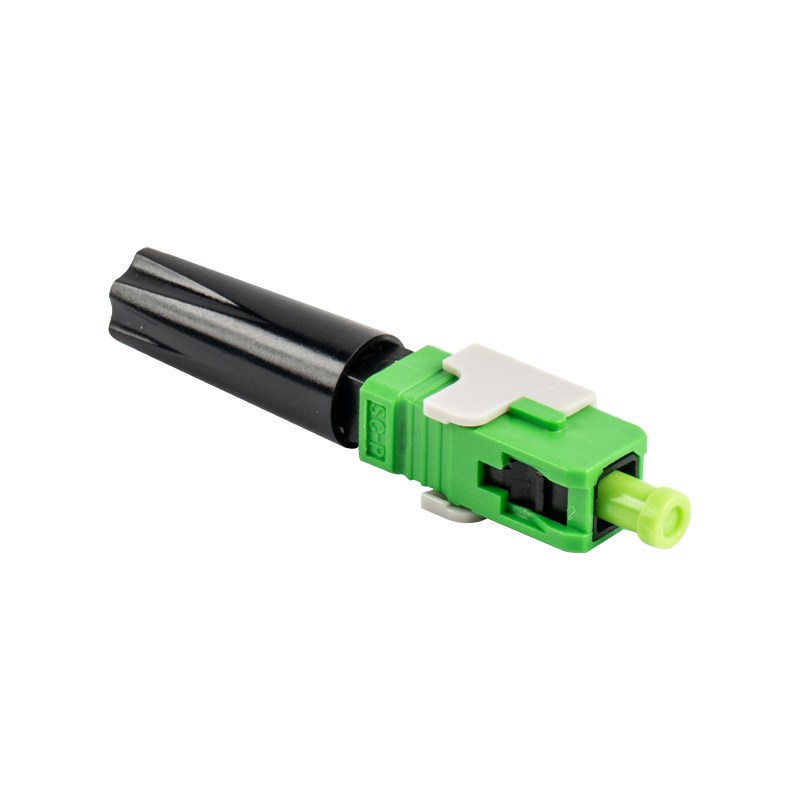

GSG-10A-50mm-APC Fiber Optic Fast connector

GSG-10A-50 mm-APC Fiber Optic Fast Connector achieves low insertion loss through precise mechanical splicing structure and pre-polished fiber ferrule, suitable for single-mode or multi-mode fiber connection.It is suitable for a variety of fiber optic network application scenarios and significantly improves the efficiency and flexibility of fiber optic cabling.

PREV：GSG-09E-52mm-UPC Fiber Optic Fast connectorNEXT：GSG-10A-50mm-UPC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX- 10(50mm)-APC
    Length 50mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75*C
    Storage Temperature -40~+85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
