GSG-10A-50mm-UPC Fiber Optic Fast connector

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-10A-50mm-UPC Fiber Optic Fast connector

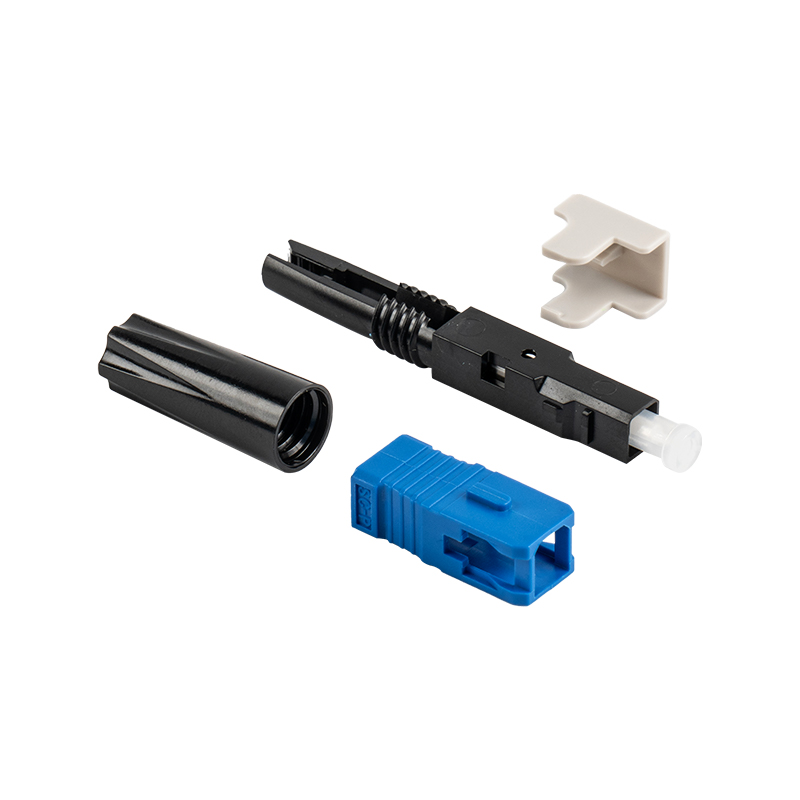

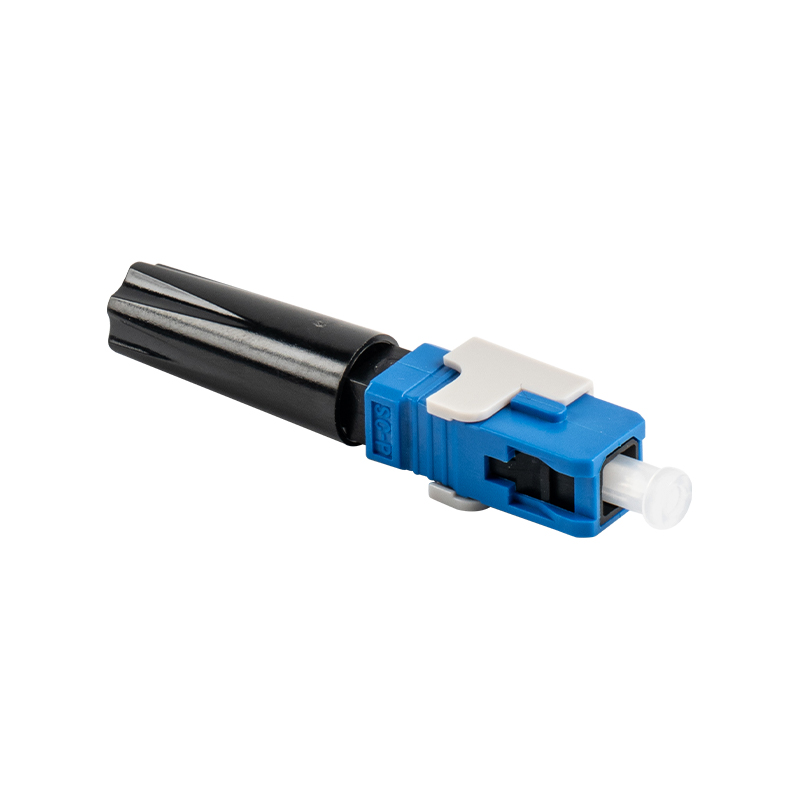

GSG-10A-50mm-UPC Fiber Optic Fast connector

The GSG-10A-50 mm-UPC Fiber Optic Fast connector is designed with high reliability and stability. It is suitable for a variety of fiber types (including single-mode and multimode fiber) and meets industry standard requirements to ensure stable performance in long-term use.

PREV：GSG-10A-50mm-APC Fiber Optic Fast connectorNEXT：GSG-10B-50mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX- 10A-50mm-UPC
    Length 50mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75*C
    Storage Temperature -40~+85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
