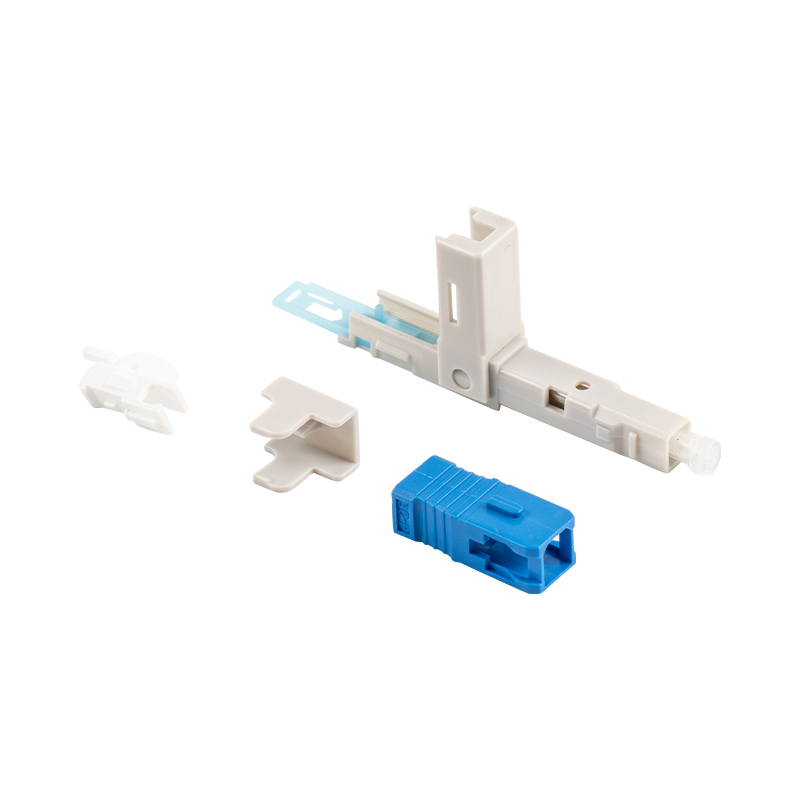

GSG-12B-52mm-UPC Fiber Optic Fast connector

GSG-12B-52 mm-UPC Fiber Optic Fast connector does not require additional connectors or complex wiring processing, reducing material waste and installation complexity, while supporting repeated connection and rapid reuse.
GSG-12B-52 mm-UPC Fiber Optic Fast connector supports up to 500 plug-in and unplug cycles, ensuring long-term stability and reliability, suitable for environments that require frequent connection and disconnection.
GSG-12B-52 mm-UPC Fiber Optic Fast connector is designed to withstand a wide range of operating and storage temperatures, ensuring reliable operation in a variety of environments.

PREV：GSG-12B-52mm-APC Fiber Optic Fast connectorNEXT：GSG-13-T-53mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-DR12-B(52mm)-UPC
    Length 52mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75*C
    Storage Temperature -40~+85°C
    Mating Times 500Times
    Cable Diameter  Drop cable:2.0* 3.0mm/2.0*5.0mm/2.0*1.6mm
