GSG-16-52mm-UPC Fiber Optic Fast connector Manufacturers

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-16-52mm-UPC Fiber Optic Fast connector

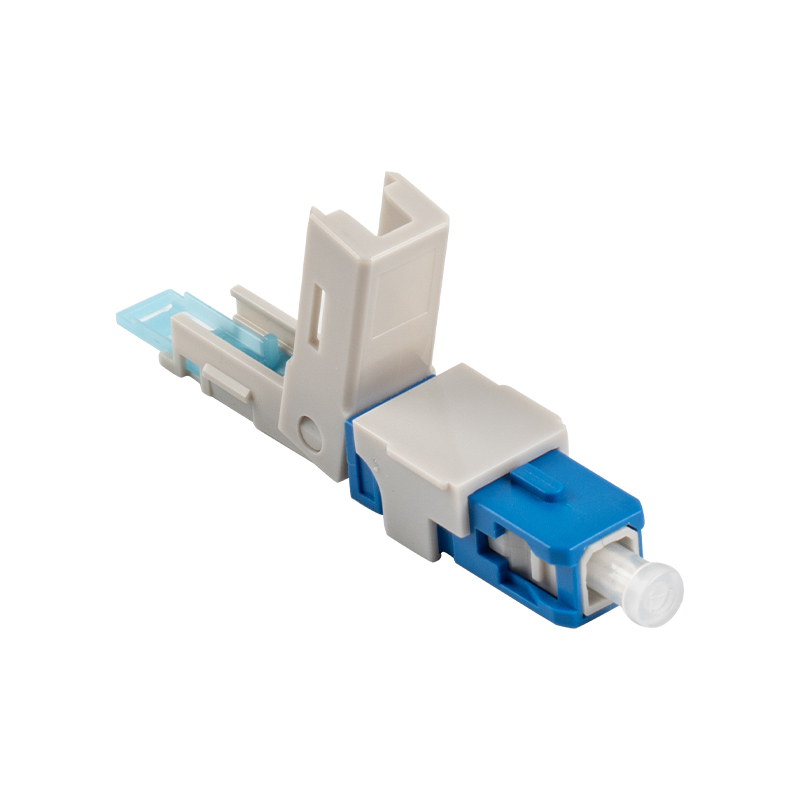

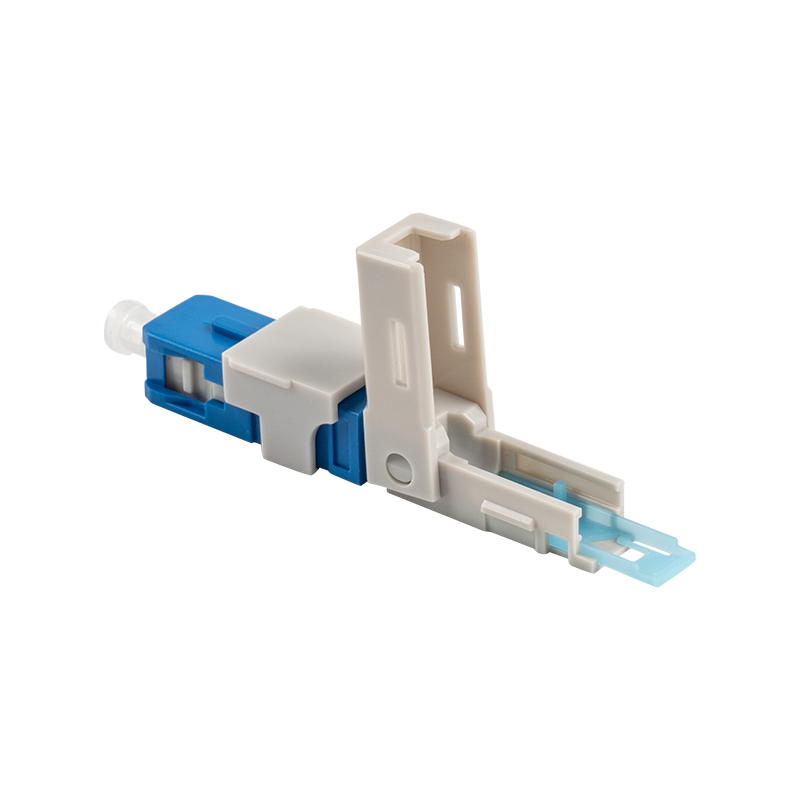

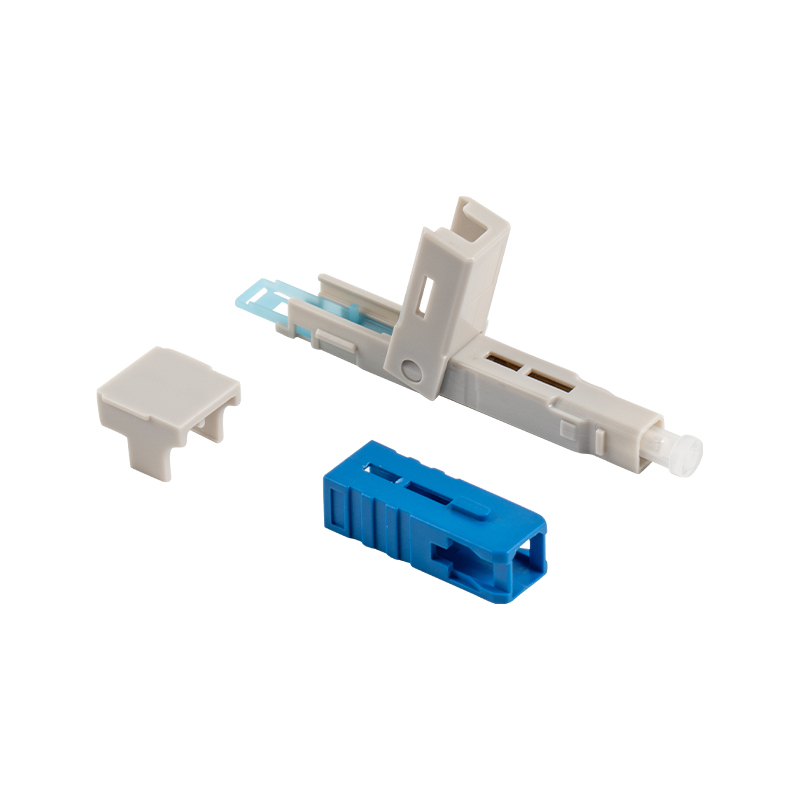

GSG-16-52mm-UPC Fiber Optic Fast connector

GSG-16-52 mm-UPC Fiber Optic Fast connector does not require additional tools for installation. Only basic fiber preparation tools (such as wire strippers and fiber cutters) are required during the installation process. No other special tools are required, which lowers the threshold for use.
GSG-16-52 mm-UPC Fiber Optic Fast connector usually has low insertion loss and high return loss, which makes it perform well in data transmission and video transmission. In addition, it also has good interchangeability and repeatability.
GSG-16-52 mm-UPC Fiber Optic Fast connector is suitable for FTTH network terminal equipment, distribution boxes, cabinets, and terminal boxes, and can also be used for fast connection during fiber optic network maintenance and recovery accidents.

PREV：GSG-16-52mm-APC Fiber Optic Fast connectorNEXT：GSG-17-52mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-DR16(52mm)-UPC
    Length 52mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75°C
    Storage Temperature -40~+85 °C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm
