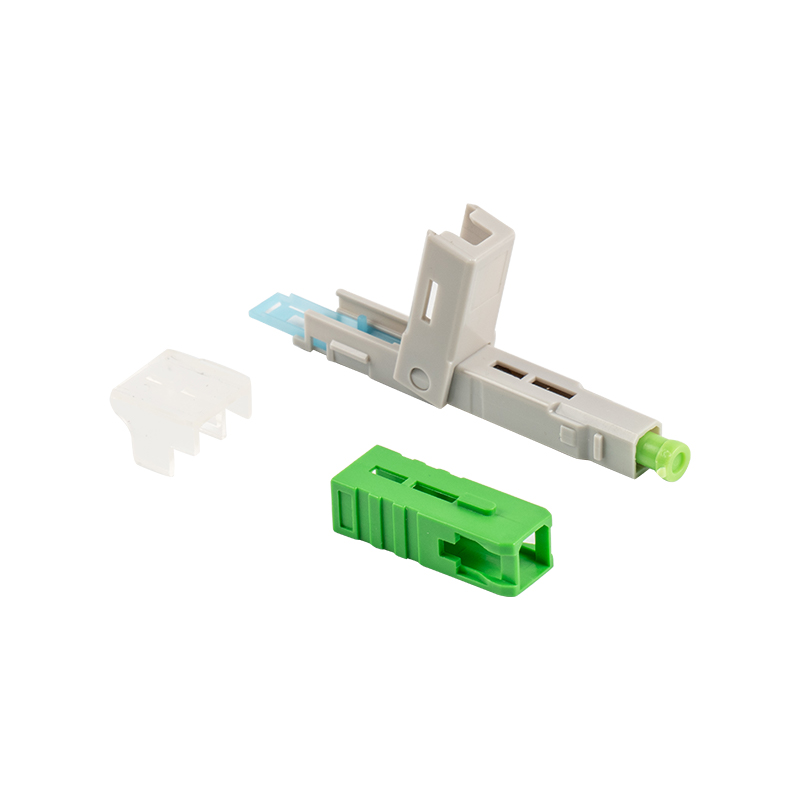

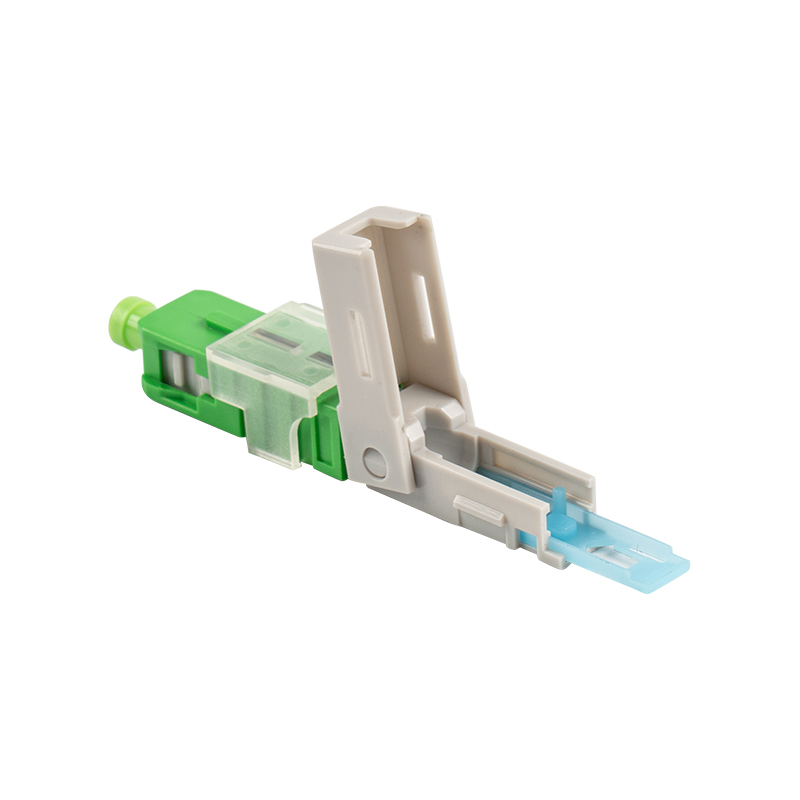

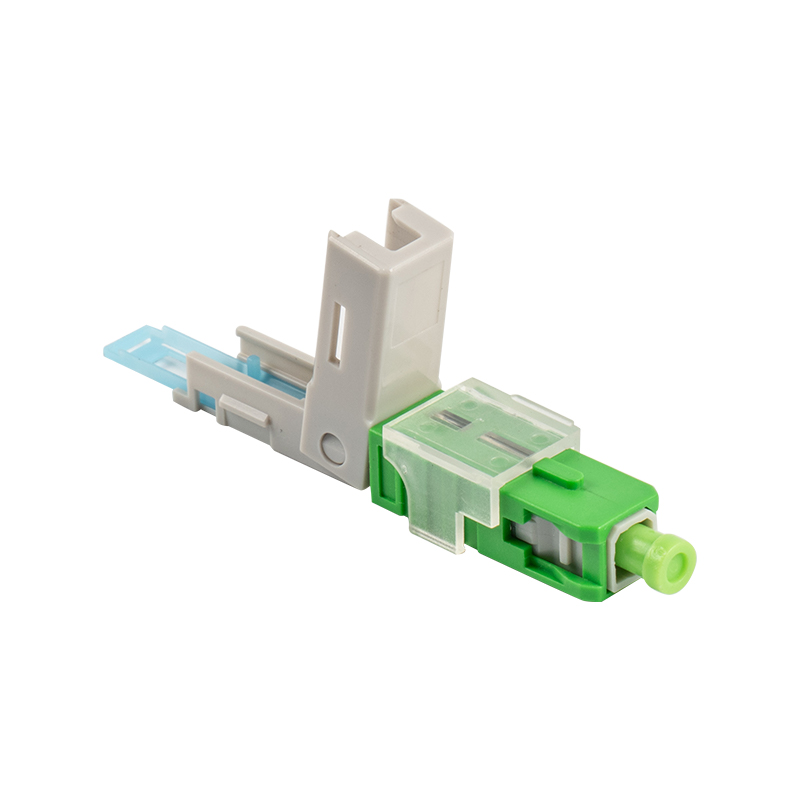

GSG-17-52mm-APC Fiber Optic Fast connector

GSG-17-52 mm-APC Fiber Optic Fast connector adopts a mechanical installation design, which can complete fiber termination without using a fusion splicer, suitable for rapid on-site deployment.
GSG-17-52 mm-APC Fiber Optic Fast connector is made of high-quality materials and advanced production processes. It has good durability and anti-aging performance, can operate stably for a long time in complex environments, and is not prone to connection failures.
The design of GSG-17-52 mm-APC Fiber Optic Fast connector allows the optical fiber to remain flexible inside the connector, which is easy to operate, and the structure is simple and easy to use.

PREV：GSG-16-52mm-UPC Fiber Optic Fast connectorNEXT：GSG-17-52mm-UPC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-DR17(52mm)-APC
    Length 52mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~ +75 °C
    Storage Temperature -40~+85 °C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm
