GSG-17-52mm-UPC Fiber Optic Fast connector Manufacturers

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-17-52mm-UPC Fiber Optic Fast connector

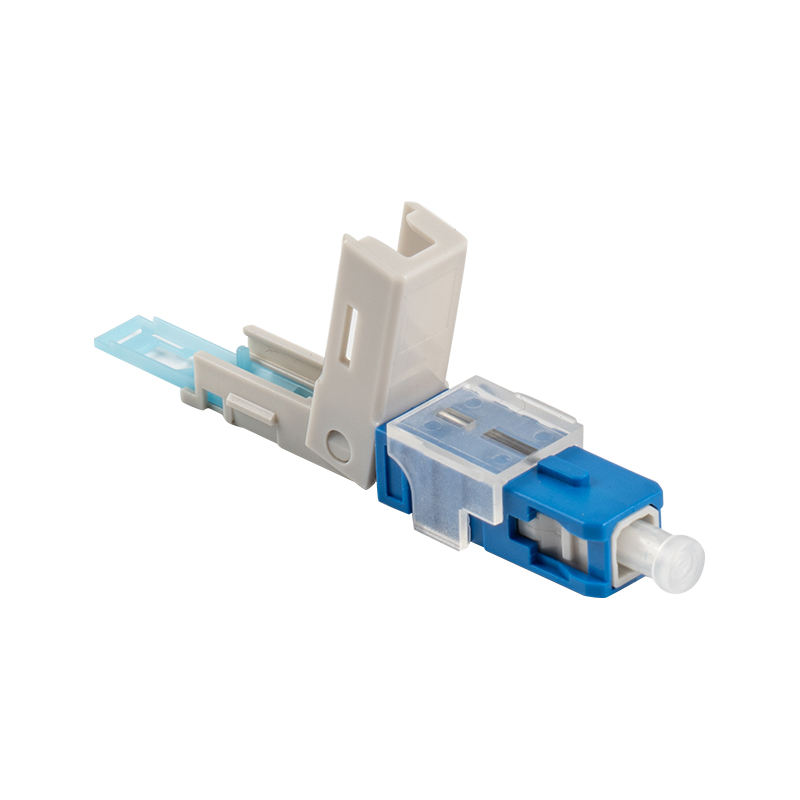

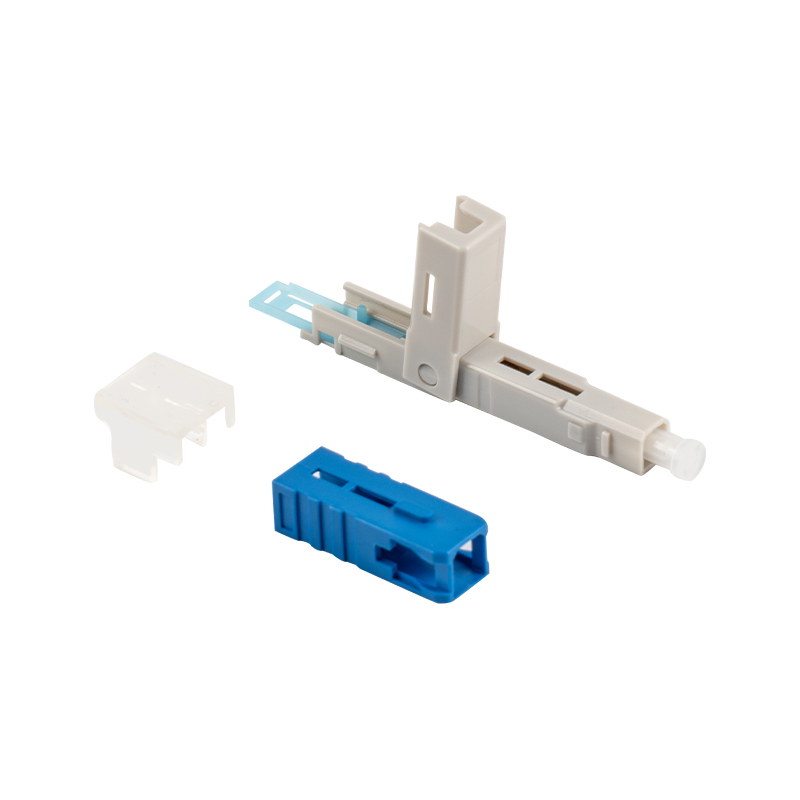

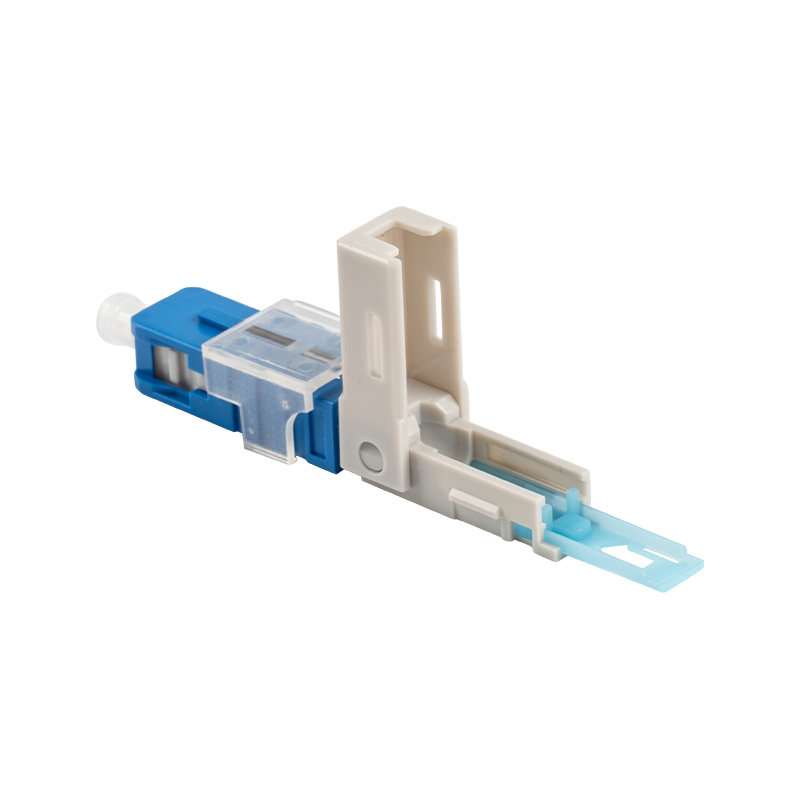

GSG-17-52mm-UPC Fiber Optic Fast connector

GSG-17-52 mm-UPC Fiber Optic Fast connector is designed for field installation and can quickly complete the termination and connection of optical fiber. No glue, polishing, or fusion equipment is required. Only basic fiber preparation tools (such as cable stripping tools and fiber scissors) are needed to easily complete the assembly.
GSG-17-52 mm-UPC Fiber Optic Fast connector can work normally in a wide temperature range and has good moisture resistance and impact resistance, suitable for applications in various harsh environments.

PREV：GSG-17-52mm-APC Fiber Optic Fast connectorNEXT：GSG-18-T-58mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-DR17(52mm)-UPC
    Length 52mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75*C
    Storage Temperature -40~+85 °C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm
