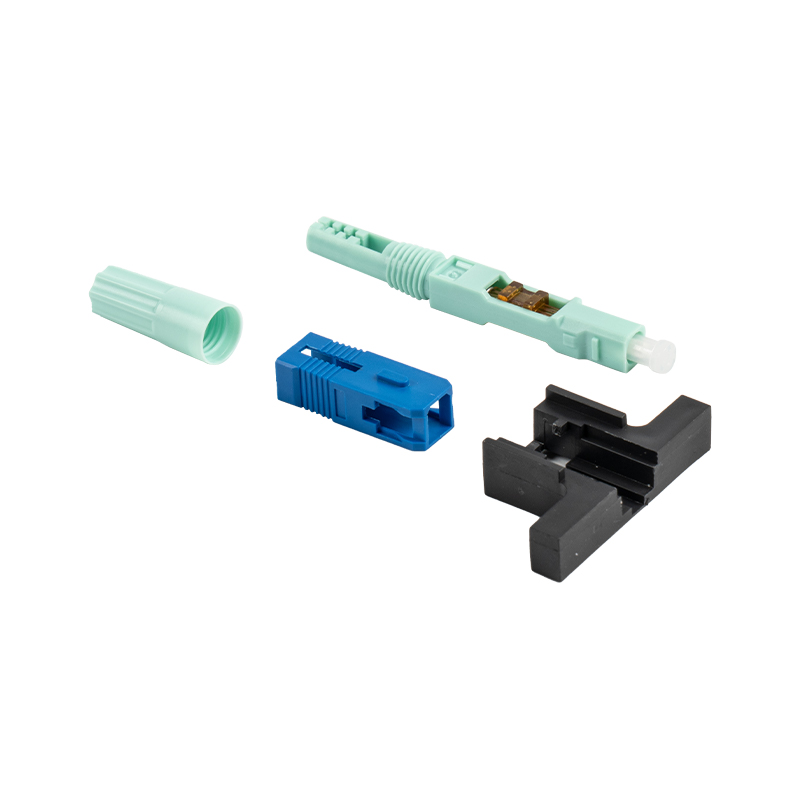

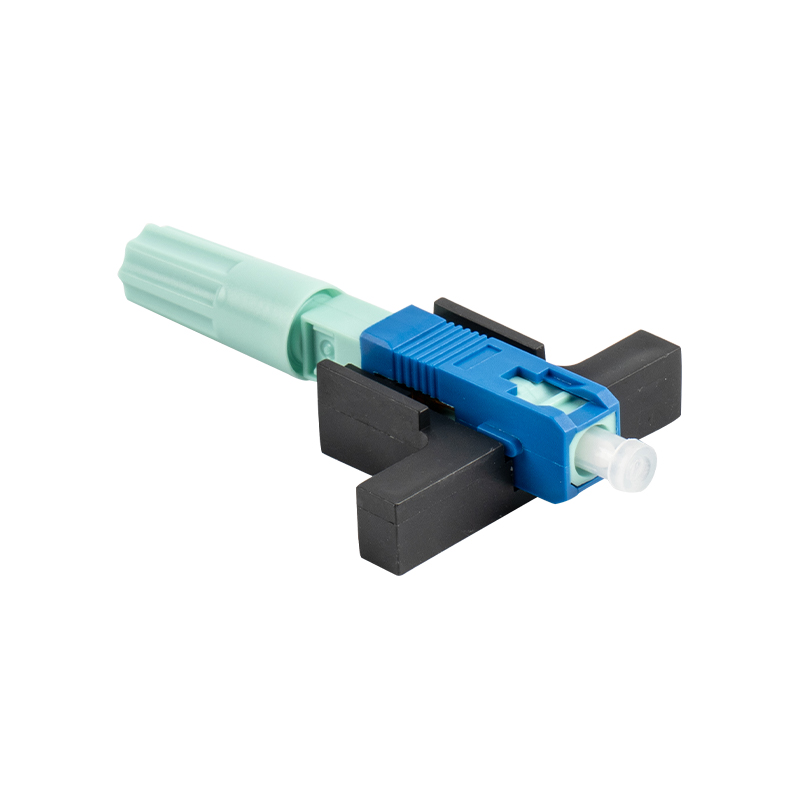

GSG-18-T-58mm-UPC Fiber Optic Fast connector

GSG-18-T-58 mm-UPC Fiber Optic Fast connector adopts mechanical cold connection, without the use of glue, epoxy, or other adhesives, which significantly shortens installation time and reduces costs.
GSG-18-T-58 mm-UPC Fiber Optic Fast connector is highly durable and supports up to 500 plug-in and unplug cycles, ensuring long-term stability and reliability for frequently used fiber optic network environments.
GSG-18-T-58 mm-UPC Fiber Optic Fast connector has strong environmental adaptability and is designed to withstand a wide range of temperatures, ensuring reliable performance regardless of working environment or storage conditions.

PREV：GSG-18-T-58mm-APC Fiber Optic Fast connectorNEXT：GSG-19-45mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-T18 (58mm) Nut Type - UPC
    Length 58mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~ +75 °C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0 mmRound cable: 5.0 mm/3.0mm/2.0mm/0.9mm
