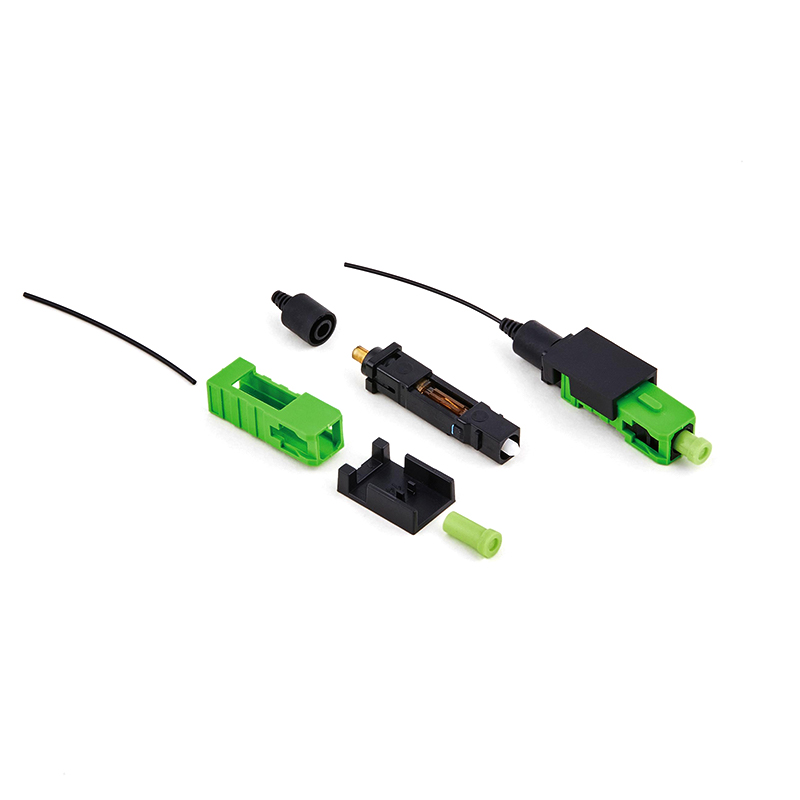

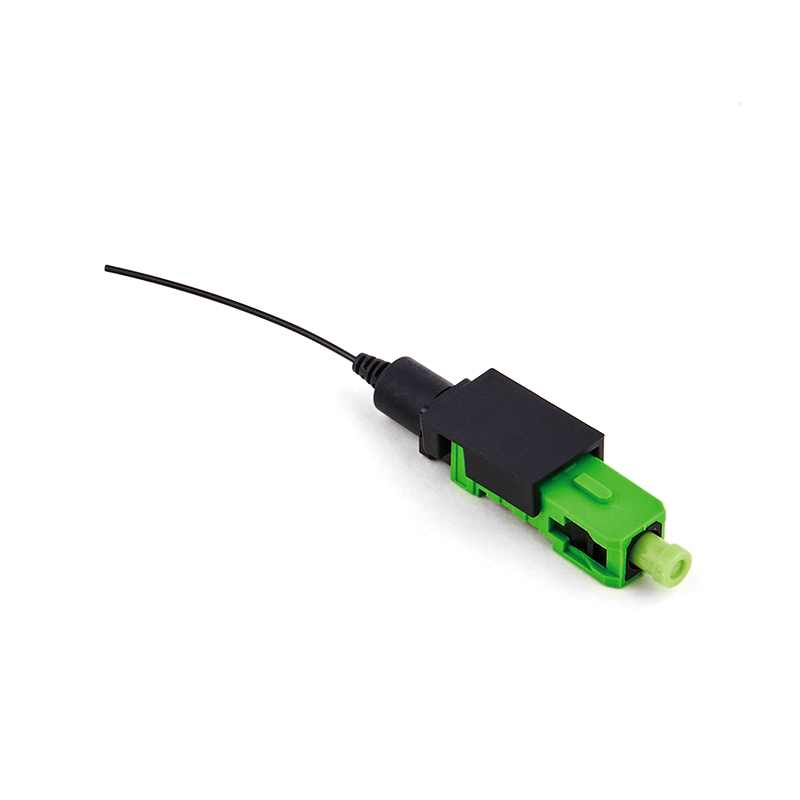

GSG-19-45mm-APC Fiber Optic Fast connector

GSG-19-45 mm-APC Fiber Optic Fast connector supports a variety of fiber types and is suitable for FTTH and other scenarios.
GSG-19-45 mm-APC Fiber Optic Fast connector's mechanical clamping technology not only reduces insertion loss but also improves return loss performance, thereby ensuring high-quality signal transmission.
GSG-19-45 mm-APC Fiber Optic Fast connector has good mechanical durability and supports up to 500 plug-in and unplug cycles, ensuring long-term stable operation.

PREV：GSG-18-T-58mm-UPC Fiber Optic Fast connectorNEXT：GSG-19-45mm-UPC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-R1 9(45mm)-APC
    Length 45mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB .
    Working Temperature -20~ +75 °C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Round cable:0.9mm/0.250mm
