GSG-19-45mm-UPC Fiber Optic Fast connector Manufacturers

Home / Product / Fiber Optic Fast Connector / SC Series Fiber Optic Fast connector / GSG-19-45mm-UPC Fiber Optic Fast connector

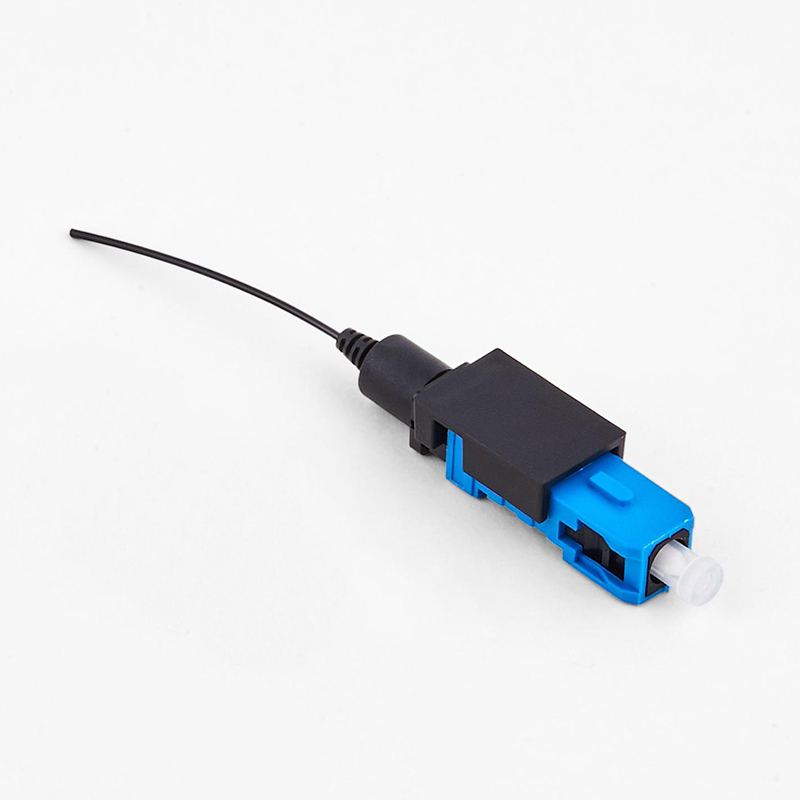

GSG-19-45mm-UPC Fiber Optic Fast connector

GSG-19-45 mm-UPC Fiber Optic Fast connector is an efficient, reliable and economical FTTH fiber fast connector, suitable for a variety of fiber optic communication scenarios, which can significantly improve installation efficiency and ensure signal transmission quality.
GSG-19-45 mm-UPC Fiber Optic Fast connector is easy to operate, and users can easily complete the installation with basic fiber preparation tools. No professional training is required to quickly master the operation method, which is suitable for rapid on-site deployment.
GSG-19-45 mm-UPC Fiber Optic Fast connector adopts a pre-polished structure inside to ensure high-quality connection performance. It supports up to 500 plug-in and unplug cycles to ensure long-term stability and durability.

PREV：GSG-19-45mm-APC Fiber Optic Fast connectorNEXT：GSG-20-51mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-R19(45mm)-UPC
    Length 45mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~ +75 °C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Round cable: 0.9 mm/0.250mm
