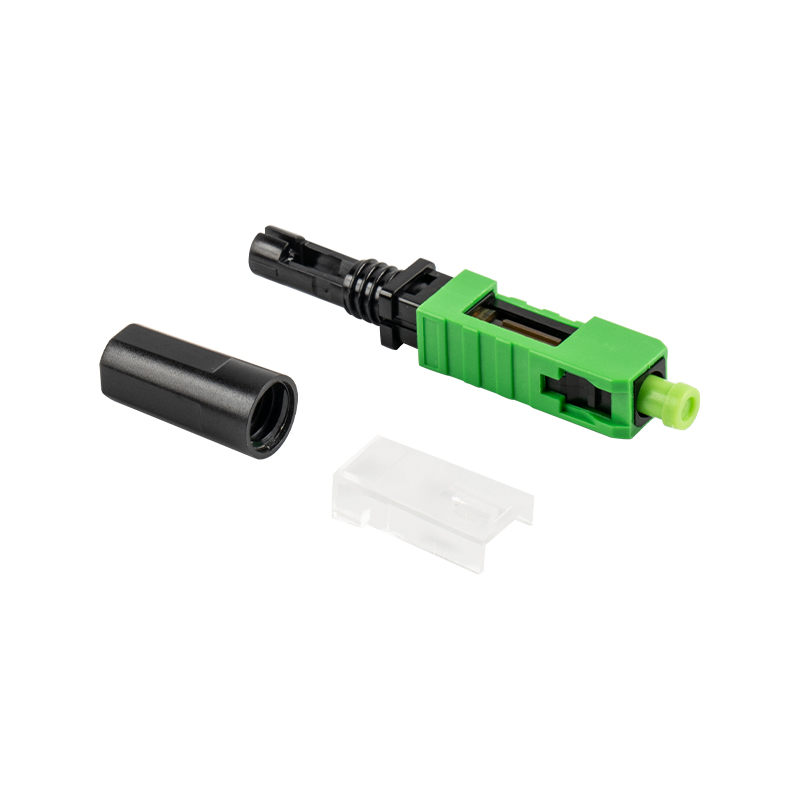

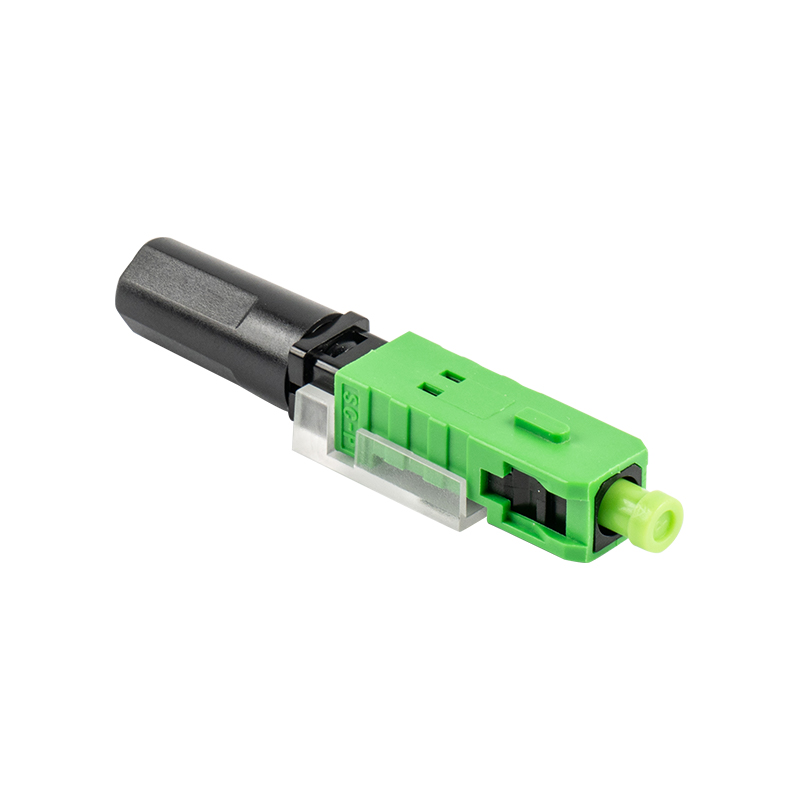

GSG-20-51mm-APC Fiber Optic Fast connector

GSG-20-51 mm-APC Fiber Optic Fast connector supports up to 500 plug-in and unplug cycles, ensuring long-term stability and durability, and is suitable for a variety of application scenarios such as FTTH network terminals, distribution frames, and local area networks.
GSG-20-51 mm-APC Fiber Optic Fast connector also has good environmental adaptability, can work normally within the temperature range, and is suitable for various complex environmental conditions.

PREV：GSG-19-45mm-UPC Fiber Optic Fast connectorNEXT：GSG-20-51mm-UPC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-R20(51mm)-APC
    Length 51 mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75°C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Round cable:3.0mm
