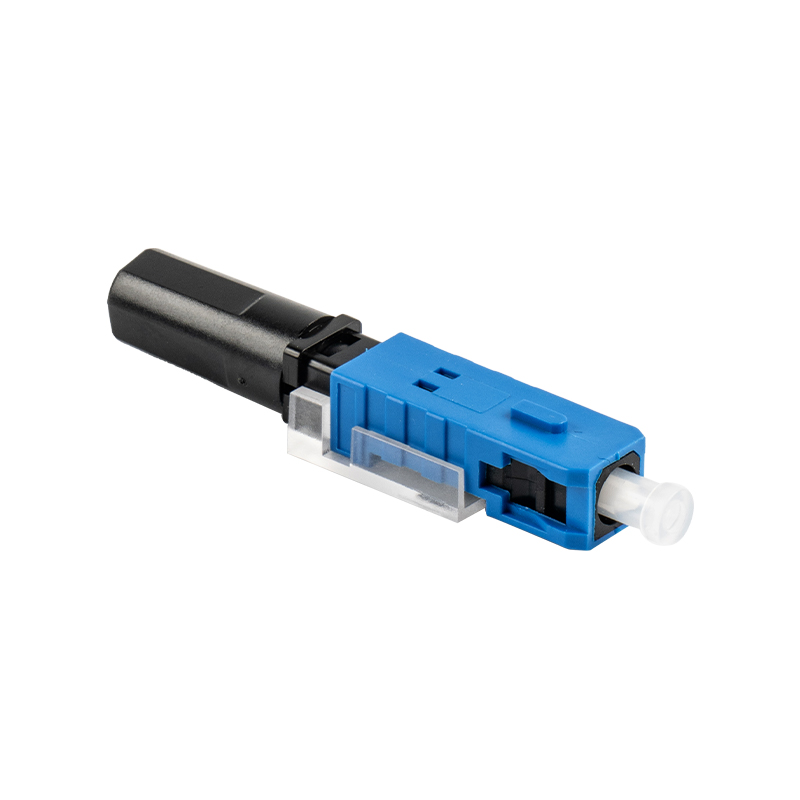

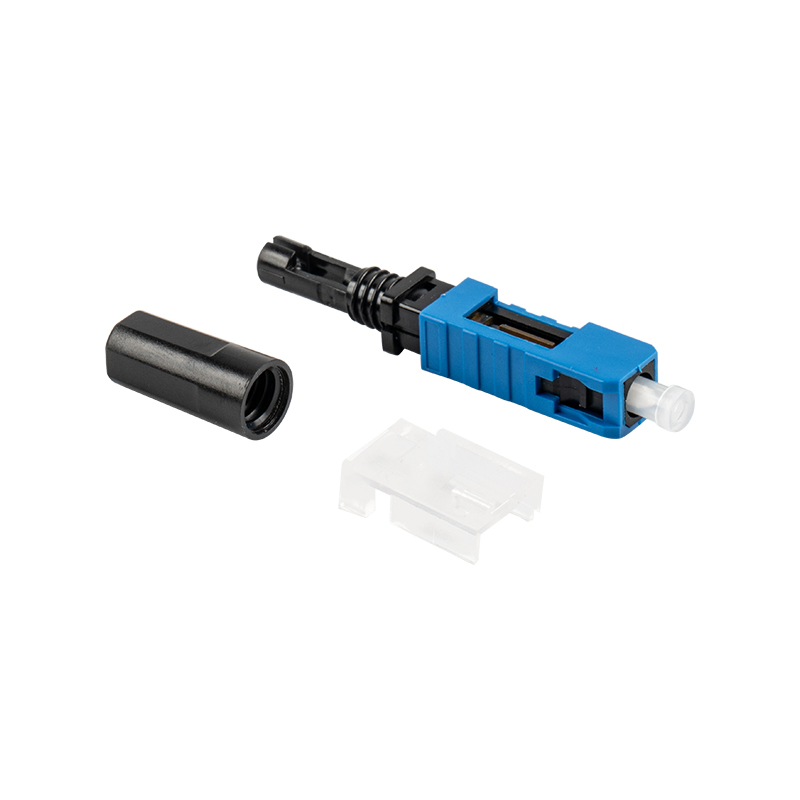

GSG-20-51mm-UPC Fiber Optic Fast connector

GSG-20-51 mm-UPC Fiber Optic Fast connector is a high-performance, high-efficiency FTTH fiber fast connector, especially suitable for fiber optic network applications that require fast deployment and efficient installation.
GSG-20-51 mm-UPC Fiber Optic Fast connector installation can be quickly learned and operated; the installation process is simple and easy to learn, and the connection is completed quickly, which is suitable for rapid on-site deployment.
The low insertion loss and high return loss of GSG-20-51 mm-UPC Fiber Optic Fast connector ensure excellent signal transmission quality and are suitable for application scenarios with high data integrity requirements.

PREV：GSG-20-51mm-APC Fiber Optic Fast connectorNEXT：GSG-21-53mm-APC Fiber Optic Fast connector
  • Details
  • contact us
  • Item LX-R20(51mm)-UPC
    Length 51mm
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB .
    Working Temperature -20~ +75 °C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Round cable:3.0mm
