Mini SC-L09-APC-Waterproof Fast connector

Home / Product / Pre-Connectorized ODN Solution / Waterproof connector / Mini SC-L09-APC-Waterproof Fast connector

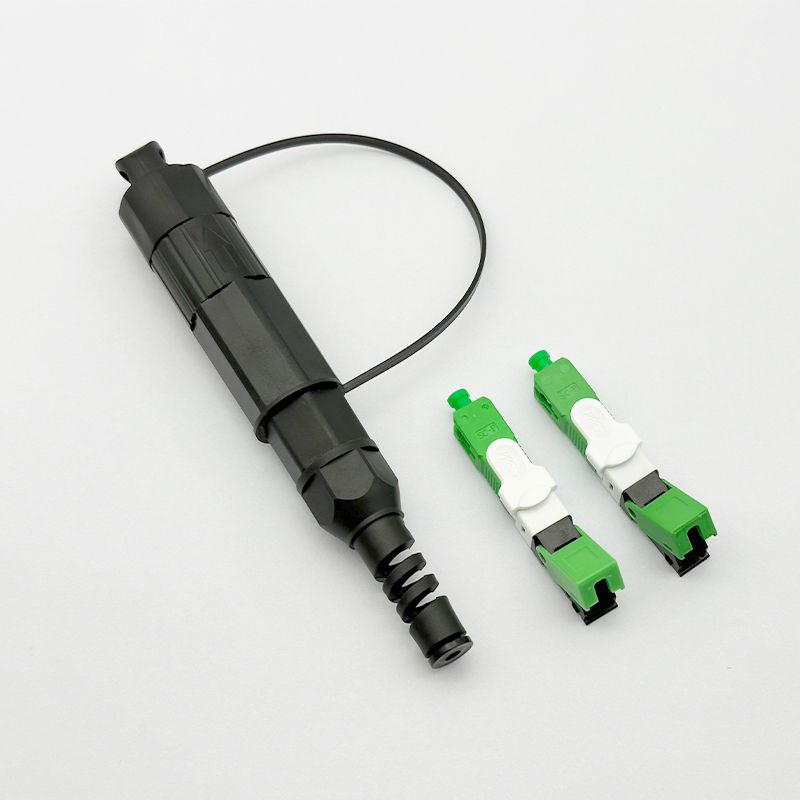

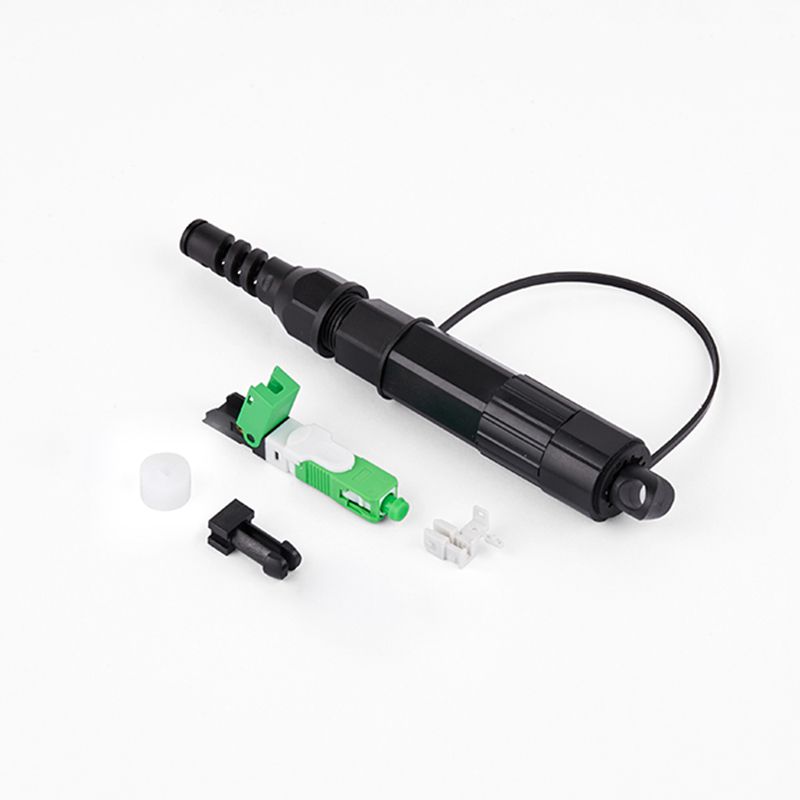

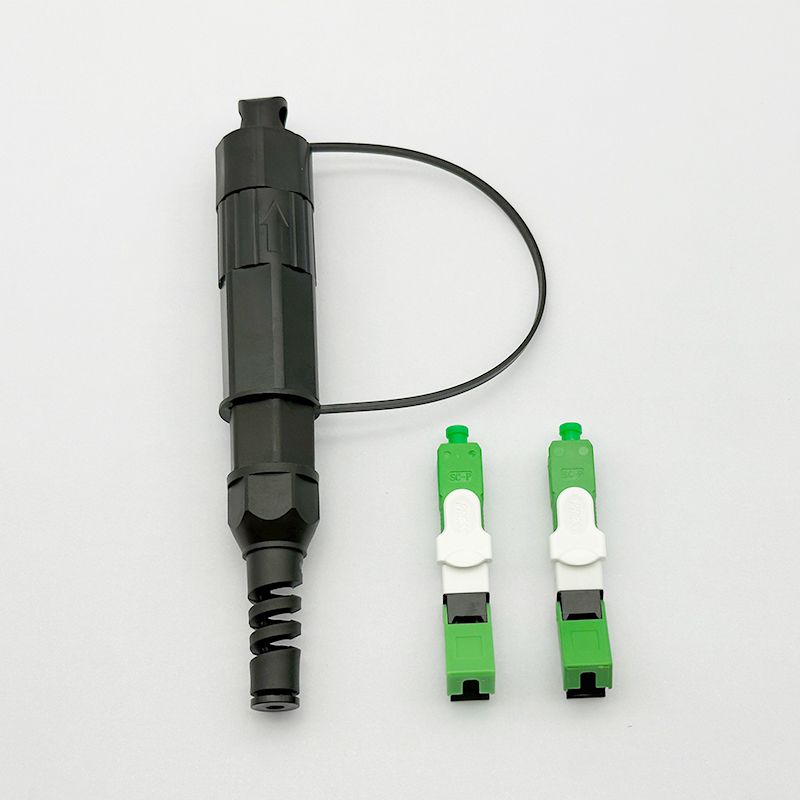

Mini SC-L09-APC-Waterproof Fast connector

MINI-SC-L09-APC quick connect waterproof joint is pre-installed with connectors and adapters, and supports blind insertion and self-locking functions. Ordinary workers can complete the connection operation, reducing dependence on professional technicians.

PREV：OptiTap SC-L02-UPC-Waterproof Fast connectorNEXT：Mini SC-L09-UPC-Waterproof Fast connector
  • Details
  • contact us
  • Item MINI-SC-L09- APC
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75°C
    Storage Temperature -40~. +85C
    Mating Times 500Times
    Cable Diameter Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm
