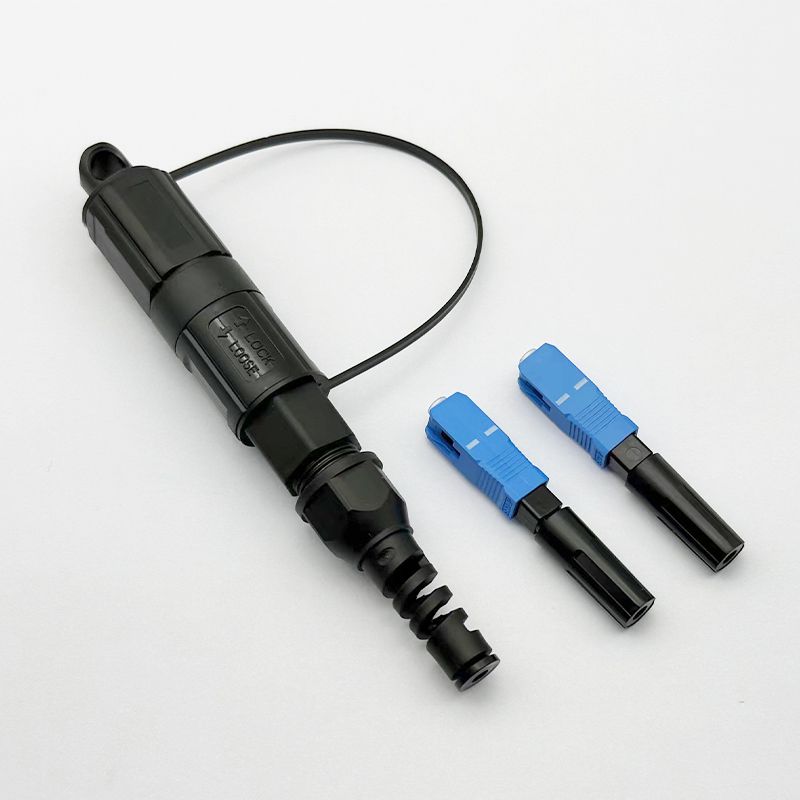

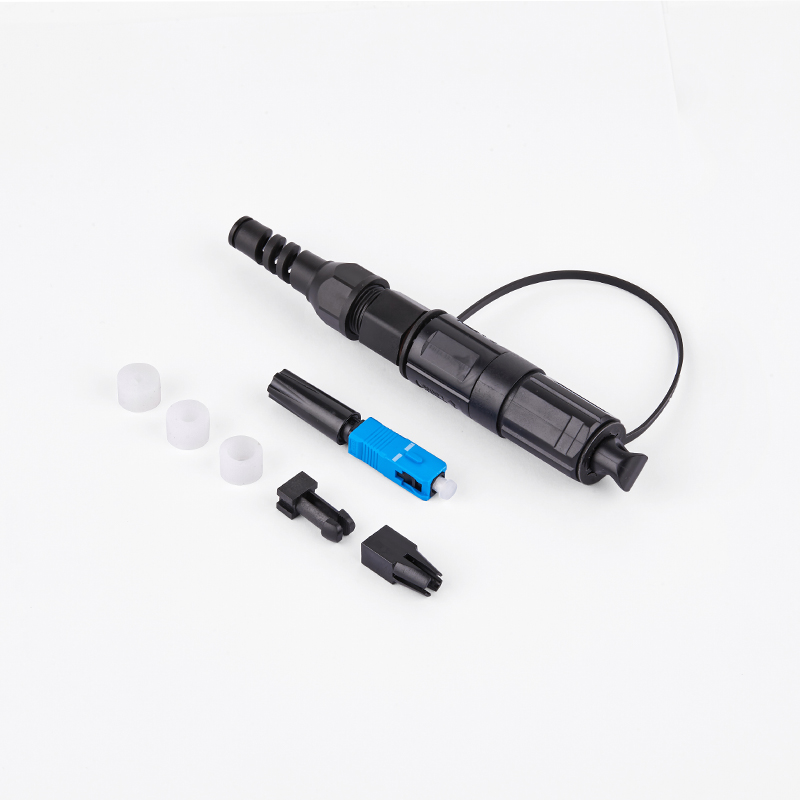

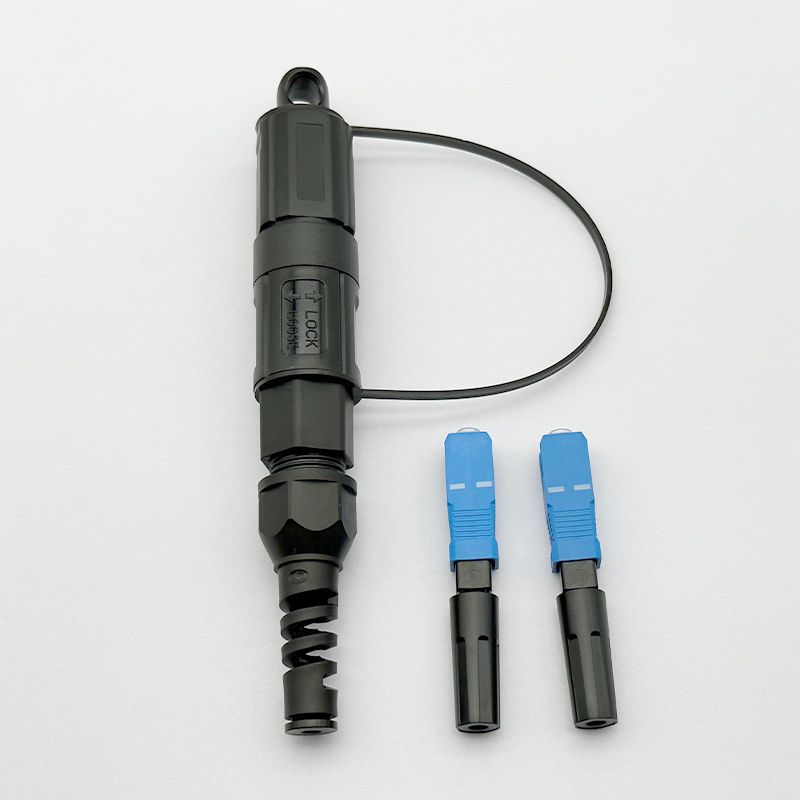

OptiTap SC-L02-UPC-Waterproof Fast connector

Home / Product / Pre-Connectorized ODN Solution / Waterproof connector / OptiTap SC-L02-UPC-Waterproof Fast connector

OptiTap SC-L02-UPC-Waterproof Fast connector

OPTITAP-SC-L02-UPC quick connect waterproof joint supports the construction needs of the next-generation ODN network, provides operators with high-performance, low-cost solutions, and promotes the large-scale promotion of FTTH and the expansion of 5 G.

PREV：OptiTap SC-L02-APC-Waterproof Fast connectorNEXT：Mini SC-L09-APC-Waterproof Fast connector
  • Details
  • contact us
  • Item OPTITAP-SC-L02-UPC
    Ferrules SM/UPC / SM/APC
    Inner Diameter of Ferrules 125um
    Insertion Loss AVG≤0.3dB MAX≤0.5dB
    Return Loss UPC≥50dB / APC≥55dB
    Working Temperature -20~+75°C
    Storage Temperature -40~ +85°C
    Mating Times 500Times
    Cable Diameter Drop cable: 2.0*3.0 mm/2.0*5.0mm/2.0*1.6 mmRound cable:5.0mm/3.0mm/2.0mm
